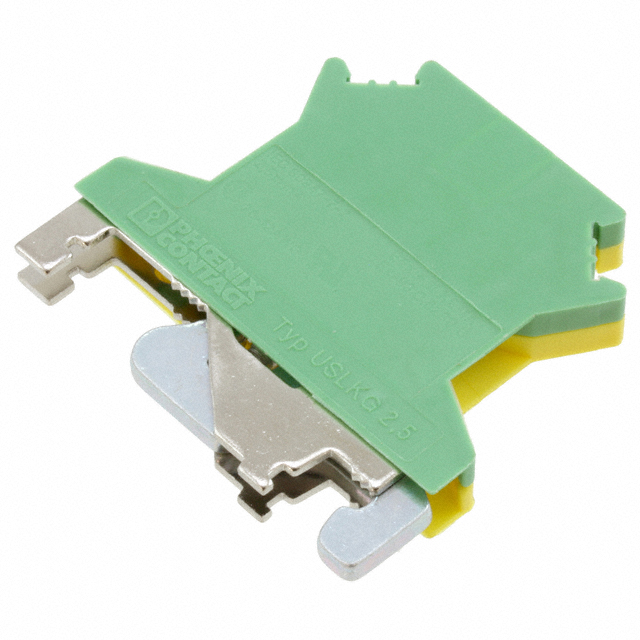

0441025

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Type :

Ground, Earth

Material - Insulation :

Polyamide (PA), Nylon

Wire/Cable Gauge :

12 AWG

Lead Free :

Lead Free

Factory Lead Time :

13 Weeks

Number of Rows :

1

Number of Contacts :

2

Color :

Green, Yellow

ECCN Code :

EAR99

Height :

49.5mm

RoHS Status :

RoHS Compliant

Wire Gauge (Min) :

12 AWG

Material Flammability Rating :

UL94 V-2

Stripping Length :

7mm

Number of Levels :

1

Weight :

19.955995g

Termination Style :

Screw

Series :

CLIPLINE USLKG

Number of Decks :

1

HTS Code :

8536.69.40.40

Wire Gauge or Range - AWG :

12-30 AWG

Flammability Rating :

UL94 V-2

Depth :

6.2mm

Orientation :

Straight

Voltage - Rated :

6kV

Housing Material :

Polyamide

Moisture Sensitivity Level (MSL) :

Not Applicable

Wire Gauge or Range - mm² :

0.2-4mm2

Wire Gauge (Max) :

30 AWG

Length :

42.5mm

Housing Color :

Green

Width :

6.2mm

Safety Approval :

BV; CSA; CUL; DNV; GOST; UL

Reach Compliance Code :

not_compliant

Number of Ways :

2
