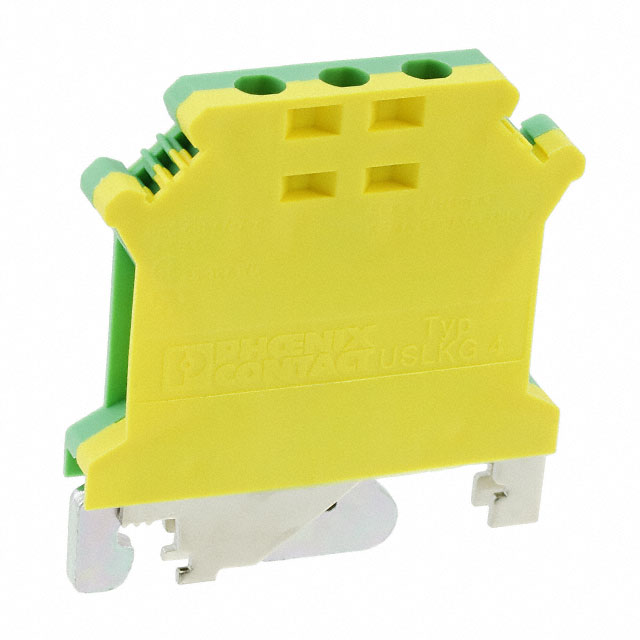

0441012

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Color :

Green, Yellow

Type :

Ground, Earth

Length :

42.5mm

Depth :

6.2mm

Weight :

22.29999g

Moisture Sensitivity Level (MSL) :

Not Applicable

Series :

CLIPLINE USLKG

Number of Poles :

2

Material - Insulation :

Polyamide (PA), Nylon

Radiation Hardening :

No

Number of Ways :

2

Additional Feature :

STANDARD: UL 94V-0, PA, SAFETY APPROVAL: KR; LR; NK; PRS; RS; UL

Factory Lead Time :

4 Weeks

Approval Agency :

CSA, UL, cULus

Termination Style :

Screw

Width :

6.2mm

Safety Approval :

BV; CSA; CUL; DNV; GOST; GL

Flammability Rating :

UL94 V-2

Lead Free :

Lead Free

HTS Code :

8536.90.40.00

Material Flammability Rating :

UL94 V-2

Wire Gauge (Max) :

24 AWG

Housing Color :

Green

Number of Decks :

1

Wire Gauge or Range - mm² :

0.2-4mm2

Wire/Cable Gauge :

12 AWG

Pbfree Code :

yes

Number of Levels :

1

Wire Gauge (Min) :

12 AWG

ECCN Code :

EAR99

Height :

54.5mm

RoHS Status :

RoHS Compliant

Number of Rows :

1

Stripping Length :

9mm

Wire Gauge or Range - AWG :

12-28 AWG
