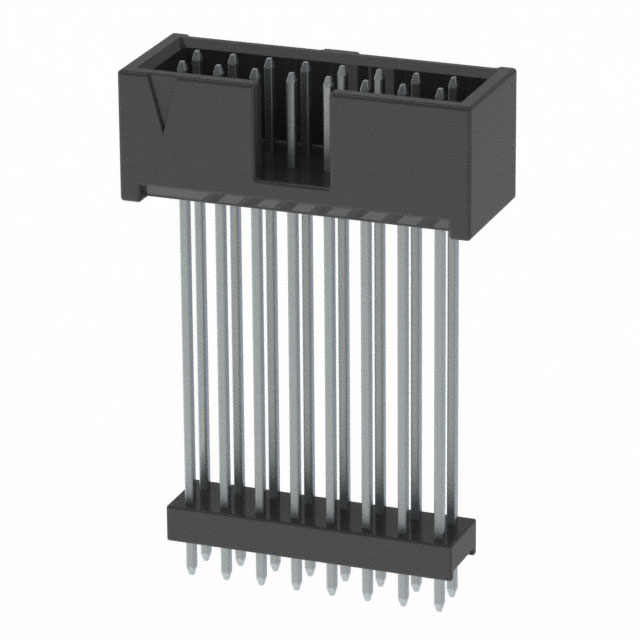

ZSS-108-09-T-D-1340
Or copy the link below:
- Mfr.Part #
- ZSS-108-09-T-D-1340
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR .100" 16POS
- Stock
- 21,221
- In Stock ：
- 21,221
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- UL Flammability Code :
- 94V-0
- Mounting Option 1 :
- LOCKING
- Contact Material :
- Bronze
- Contact Finish - Mating :
- Tin
- Connector Type :
- BOARD STACKING CONNECTOR
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Polyester
- Min Operating Temperature :
- -55°C
- Gender :
- Male
- Max Operating Temperature :
- 105°C
- RoHS Status :
- ROHS3 Compliant
- Pitch :
- 2.54mm
- Pbfree Code :
- yes
- Number of Rows :
- 2
- Orientation :
- Straight
- Dielectric Withstanding Voltage :
- 1400VAC V
- Contact Style :
- SQ PIN-SKT
- Mounting Type :
- BOARD
- Packaging :
- Bulk
- Body Breadth :
- 0.365 inch
- PCB Contact Pattern :
- RECTANGULAR
- Contact Pattern :
- RECTANGULAR
- Mating Contact Row Spacing :
- 0.1 inch
- Factory Lead Time :
- 2 Weeks
- Reliability :
- COMMERCIAL
- DIN Conformance :
- No
- Rated Current (Signal) :
- 3A
- Polarization Key :
- POLARIZED HOUSING
- Number of Contacts :
- 16
- Insulation Resistance :
- 5000000000Ohm
- Filter Feature :
- No
- MIL Conformance :
- No
- Additional Feature :
- SHROUDED
- Reference Standard :
- UL
- Termination :
- Solder
- Number Of PCB Rows :
- 2
- Contact Plating :
- Tin
- IEC Conformance :
- No
- Number of Conductors :
- ONE
- Depth :
- 9.27mm
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- Length :
- 24.13mm
- Housing Color :
- Black
- JESD-609 Code :
- e3
- Datasheets
- ZSS-108-09-T-D-1340
2-Row BOARD STACKING CONNECTOR Solder Bronze Bulk BOARD TIN
ZSS-108-09-T-D-1340 Overview
The product is packaged in BOARD STACKING CONNECTOR.This device is mounted in the BOARD position.It has been determined that a Bulk case is necessary to package the product.To name a few, there is also SHROUDED.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -55°C is required for this device.
ZSS-108-09-T-D-1340 Features
ZSS-108-09-T-D-1340 Applications
There are a lot of Samtec Inc.
ZSS-108-09-T-D-1340 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
