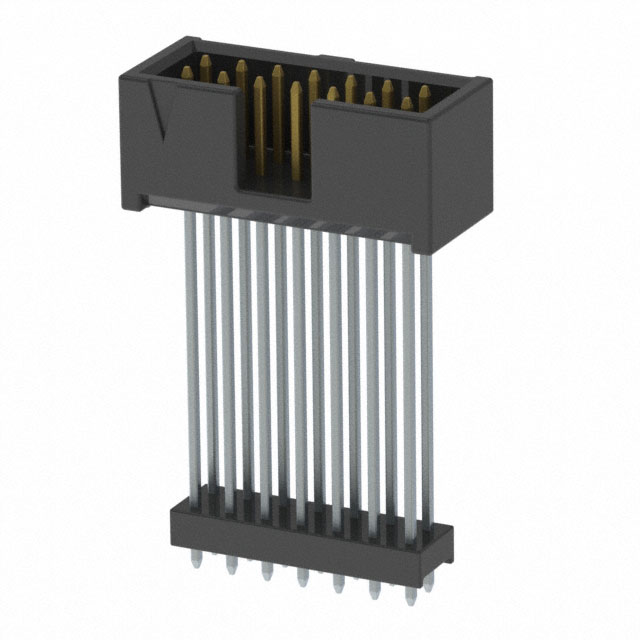

ZSS-107-08-L-D-1240

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Operating Temperature (Min) :

-55°C

Reliability :

COMMERCIAL

Polarization Key :

POLARIZED HOUSING

Insulation Resistance :

5000000000Ohm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Body Breadth :

0.365 inch

Contact Pattern :

RECTANGULAR

Number of Conductors :

ONE

Filter Feature :

No

Number of Contacts :

14

Termination :

Solder

Pitch :

2.54mm

Rated Current (Signal) :

3A

DIN Conformance :

No

Option :

GENERAL PURPOSE

Contact Plating :

Gold

Radiation Hardening :

No

Packaging :

Bulk

RoHS Status :

ROHS3 Compliant

Pbfree Code :

yes

Number of Rows :

2

Connector Type :

BOARD STACKING CONNECTOR

Body Length or Diameter :

0.85 inch

Reference Standard :

UL

Additional Feature :

SHROUDED

UL Flammability Code :

94V-0

Gender :

Male

Number Of PCB Rows :

2

Factory Lead Time :

2 Weeks

Plating Thickness :

10μin

Contact Style :

SQ PIN-SKT

Mating Contact Row Spacing :

0.1 inch

IEC Conformance :

No

Mixed Contacts :

No

Mount :

Through Hole

Insulator Color :

Black

JESD-609 Code :

e3

Insulation Material :

GLASS FILLED POLYESTER

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Length - Termination :

0.09 inch
