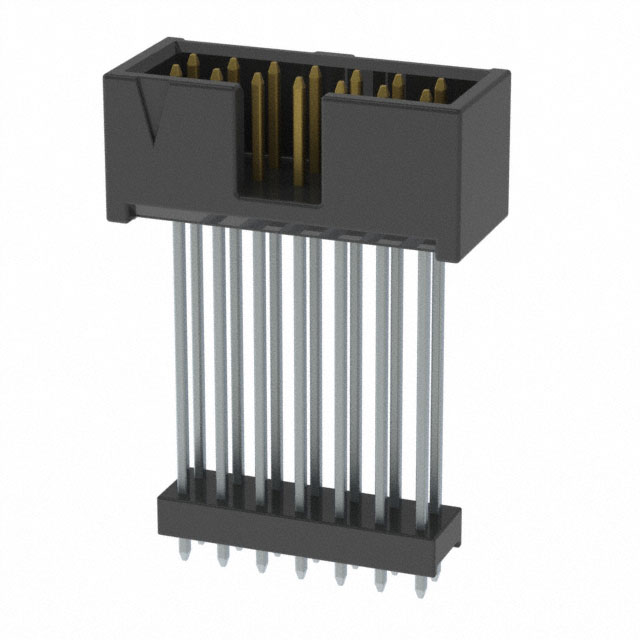

ZSS-107-07-L-D-1140

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Termination :

Solder

Reference Standard :

UL

IEC Conformance :

No

Mating Contact Row Spacing :

0.1 inch

Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

2

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Rows :

2

Additional Feature :

SHROUDED

Operating Temperature (Min) :

-55°C

Factory Lead Time :

2 Weeks

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Polarization Key :

POLARIZED HOUSING

Packaging :

Bulk

Pbfree Code :

yes

Insulator Color :

Black

Mixed Contacts :

No

Rated Current (Signal) :

3A

Length - Termination :

0.09 inch

Filter Feature :

No

Mount :

Through Hole

Gender :

Male

Contact Style :

SQ PIN-SKT

Connector Type :

BOARD STACKING CONNECTOR

Body Length or Diameter :

0.85 inch

Pitch :

2.54mm

Contact Plating :

Gold

MIL Conformance :

No

Body Breadth :

0.365 inch

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Number of Contacts :

14

Radiation Hardening :

No

Number of Conductors :

ONE

UL Flammability Code :

94V-0

Insulation Resistance :

5000000000Ohm

RoHS Status :

ROHS3 Compliant

Option :

GENERAL PURPOSE

JESD-609 Code :

e3

Plating Thickness :

10μin

Insulation Material :

GLASS FILLED POLYESTER
