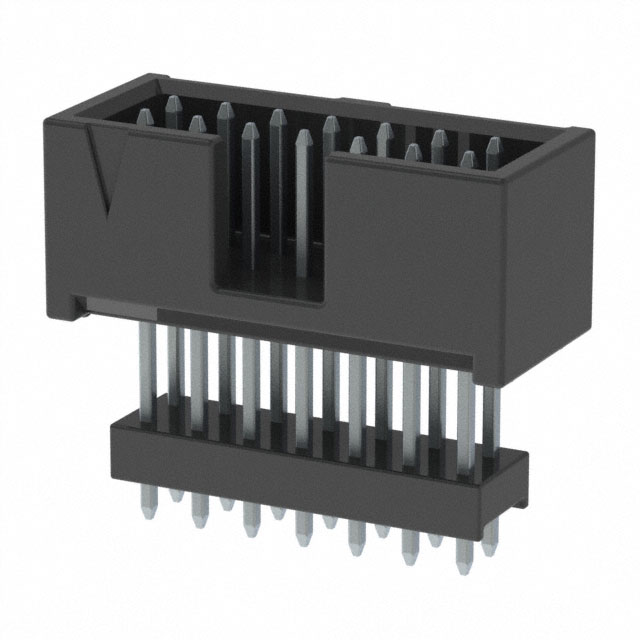

ZSS-107-02-T-D-640

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

DIN Conformance :

No

Mount :

Through Hole

Option :

GENERAL PURPOSE

Row Spacing - Mating :

0.100 (2.54mm)

Operating Temperature :

-55°C~105°C

IEC Conformance :

No

Housing Material :

Polyester

Factory Lead Time :

3 Weeks

Published :

2015

Overall Contact Length :

0.730 18.54mm

Contact Length - Post :

0.090 2.29mm

Filter Feature :

No

Contact Length - Mating :

0.250 6.35mm

Mixed Contacts :

No

Housing Color :

Black

Insulation Height :

0.640 16.26mm

Depth :

9.27mm

Contact Material :

Phosphor Bronze

Gender :

Male

Number of Positions Loaded :

All

Style :

Board to Board or Cable

Contact Finish - Mating :

Tin

Packaging :

Tube

Number of Rows :

2

Pitch - Mating :

0.100 2.54mm

Feature :

Keying Slot

RoHS Status :

ROHS3 Compliant

Insulation Material :

Polyester, Glass Filled

Mounting Type :

Through Hole

Contact Type :

Male Pin

Length :

21.59mm

Termination :

Solder

Material Flammability Rating :

UL94 V-0

Radiation Hardening :

No

Pbfree Code :

yes

Number of Positions :

14

Current Rating (Amps) :

3A

Connector Type :

Header, Elevated

Series :

Flex Stack, ZSS

JESD-609 Code :

e3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shrouding :

Shrouded - 4 Wall

UL Flammability Code :

94V-0

Fastening Type :

Push-Pull

MIL Conformance :

No

Orientation :

Straight

Contact Shape :

Square
