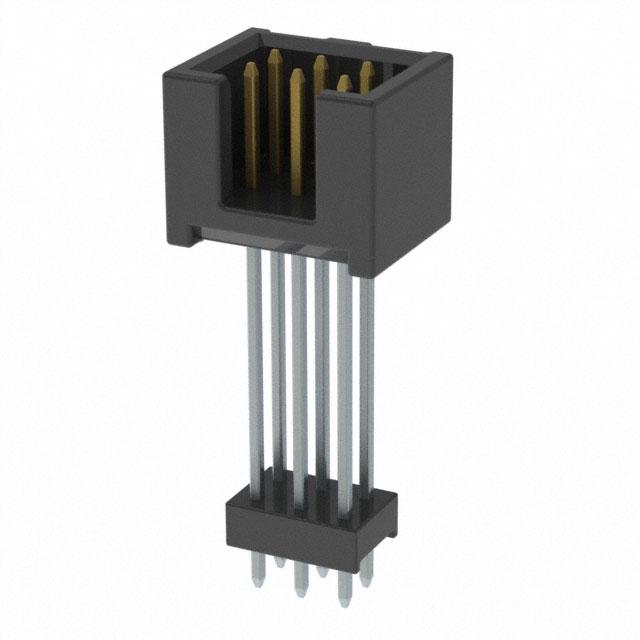

ZSS-103-06-L-D-1040

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Number of Conductors :

ONE

Contact Finish - Mating :

AU ON NI

Mounting Type :

BOARD

Body/Shell Style :

Receptacle

Operating Temperature (Min) :

-55°C

Reliability :

COMMERCIAL

Insulation Material :

GLASS FILLED POLYESTER

Number Of PCB Rows :

2

Body Length or Diameter :

0.45 inch

Mating Contact Row Spacing :

0.1 inch

Contact Finish Termination :

TIN OVER NICKEL

Factory Lead Time :

2 Weeks

Contact Pattern :

RECTANGULAR

Length - Termination :

0.09 inch

Total Number of Contacts :

6

Contact Style :

SQ PIN-SKT

Insulator Color :

Black

RoHS Status :

ROHS3 Compliant

PCB Contact Pattern :

RECTANGULAR

Mating Contact Pitch :

0.1 inch

Number of Rows :

2

Plating Thickness :

10μin

Mounting Style :

Straight

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.40

Mounting Option 1 :

LOCKING

PCB Contact Row Spacing :

2.54 mm

Contact Gender :

Male

Reference Standard :

UL

ECCN Code :

EAR99

Terminal Pitch :

2.54mm

Connector Type :

BOARD CONNECTOR

Termination Type :

Solder

Operating Temperature (Max) :

125°C

Rated Current (Signal) :

3A

Dielectric Withstanding Voltage :

1400VAC V

Polarization Key :

POLARIZED HOUSING

Body Breadth :

0.365 inch

Body Depth :

1.04 inch

Contact Material :

Phosphor Bronze
