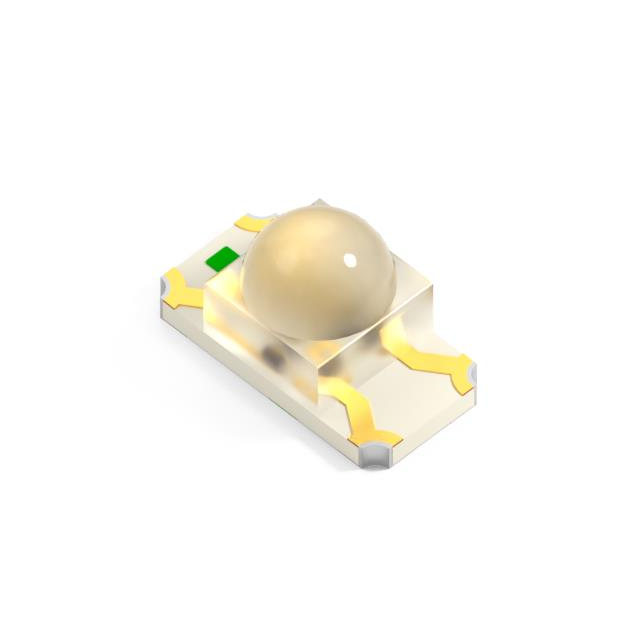

XZM2CRKM2DG55W-8

Manufacturer :

SunLED

Product Category :

Operating Temperature (Max) :

85°C

Lens Size :

1.60mm Dia

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Case Code (Metric) :

3216

Color :

Green, Red

Terminal Finish :

Gold (Au)

Published :

2016

Packaging :

Tape and Reel (TR)

Wavelength - Peak :

520nm Green 640nm Red

Number of Functions :

1

Number of Terminations :

4

Forward Current-Max :

0.03A

Millicandela Rating :

1295mcd Green, 1295mcd Red

Lens Color :

Colorless

Lens Style :

Round with Domed Top

JESD-609 Code :

e4

HTS Code :

8541.40.20.00

Wavelength - Dominant :

525nm Green 625nm Red

Lens Transparency :

Clear

Luminous Intensity :

1.295 cd

Size / Dimension :

3.20mm Lx1.60mm W

Optoelectronic Device Type :

DUAL COLOR LED

Case Code (Imperial) :

1206

Viewing Angle :

30°

Voltage - Forward (Vf) (Typ) :

3.2V Green 2.2V Red

Packing Method :

TR, 7 INCH

Factory Lead Time :

6 Weeks

RoHS Status :

ROHS3 Compliant

Operating Temperature (Min) :

-40°C

Configuration :

Independent

Mounting Type :

Surface Mount

Mount :

Surface Mount

Package / Case :

1206 (3216 Metric)

Height :

2mm

Current - Test :

20mA
