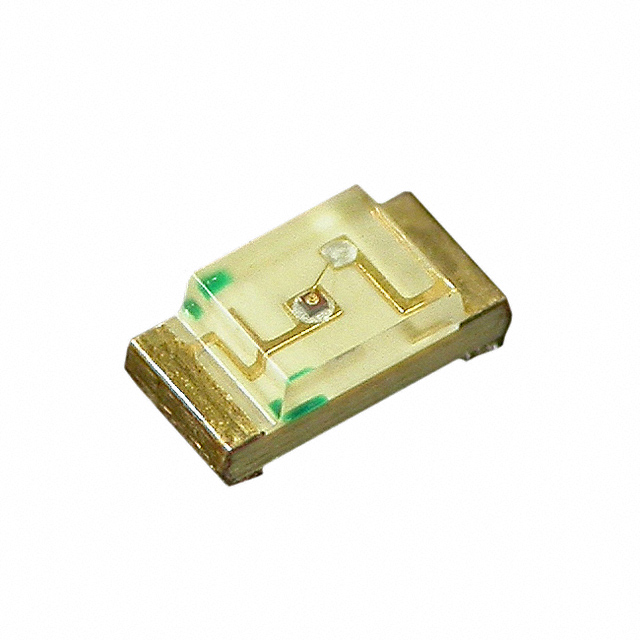

XZM2ACR55W-1
Or copy the link below:
- Mfr.Part #
- XZM2ACR55W-1
- Manufacturer
- SunLED
- Package / Case
- 1206 (3216 Metric)
- Datasheet
- Download
- Description
- LED RED CLEAR CHIP SMD
- Stock
- 5,968
- In Stock ：
- 5,968
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- SunLED
- Product Category :
- Size / Dimension :
- 3.20mm Lx1.60mm W
- Height :
- 750μm
- Packaging :
- Cut Tape (CT)
- Operating Temperature (Max) :
- 85°C
- Optoelectronic Device Type :
- SINGLE COLOR LED
- Number of Terminations :
- 2
- Wavelength - Peak :
- 640nm
- Terminal Pitch :
- 3.75mm
- Case Code (Metric) :
- 3216
- Voltage - Forward (Vf) (Typ) :
- 2.2V
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Package / Case :
- 1206 (3216 Metric)
- ECCN Code :
- EAR99
- Viewing Angle :
- 120°
- Number of Functions :
- 1
- Lens Size :
- 1.90mmx1.60mm
- Shape :
- RECTANGULAR
- Operating Temperature (Min) :
- -40°C
- Current - Test :
- 20mA
- Lens Style :
- Rectangle with Flat Top
- Lens Transparency :
- Clear
- Mount :
- Surface Mount
- Wavelength - Dominant :
- 625nm
- Case Code (Imperial) :
- 1206
- HTS Code :
- 8541.40.20.00
- Mounting Type :
- Surface Mount
- Forward Current-Max :
- 0.03A
- Factory Lead Time :
- 6 Weeks
- Packing Method :
- Tape and Reel
- Pbfree Code :
- yes
- Configuration :
- Standard
- RoHS Status :
- ROHS3 Compliant
- Published :
- 2011
- Luminous Intensity :
- 447 mcd
- Lens Color :
- Colorless
- Color :
- Red
- Datasheets
- XZM2ACR55W-1
