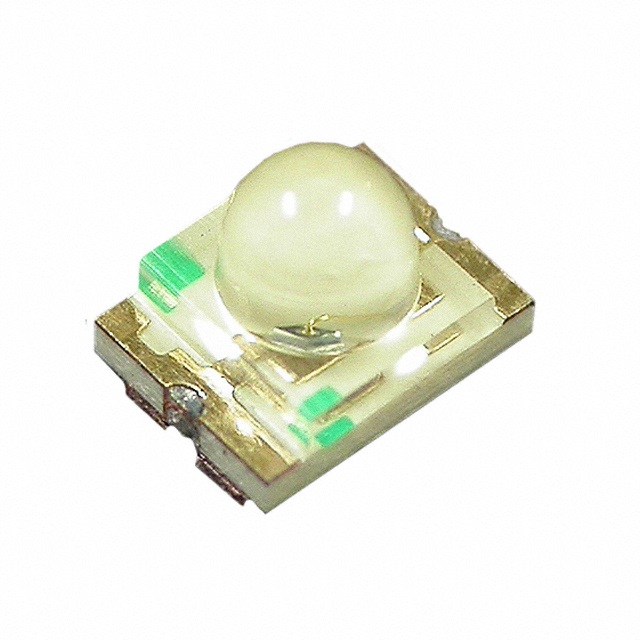

XZM2ACY78W

Manufacturer :

SunLED

Product Category :

RoHS Status :

ROHS3 Compliant

Pbfree Code :

yes

Case Code (Metric) :

3224

Forward Current-Max :

0.03A

Color :

Yellow

Operating Temperature (Max) :

85°C

Millicandela Rating :

3590mcd

Case Code (Imperial) :

1209

Lens Transparency :

Clear

Voltage - Forward (Vf) (Typ) :

2V

Current - Test :

20mA

Packaging :

Cut Tape (CT)

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Factory Lead Time :

6 Weeks

Published :

2011

Viewing Angle :

20°

Lens Size :

1.80mm Dia

Height :

2.4mm

Packing Method :

Tape and Reel

Lens Style :

Round with Domed Top

Mount :

Surface Mount

Wavelength - Dominant :

590nm

Optoelectronic Device Type :

SINGLE COLOR LED

ECCN Code :

EAR99

Number of Functions :

1

Mounting Type :

Surface Mount

Configuration :

Standard

Size / Dimension :

3.20mm Lx2.40mm W

Luminous Intensity :

3.59 cd

HTS Code :

8541.40.20.00

Lens Color :

Colorless

Operating Temperature (Min) :

-40°C

Terminal Pitch :

3.2mm

Peak Wavelength :

590 nm

Package / Case :

1209 (3224 Metric)

Number of Terminations :

2

T-code :

T-3/4
