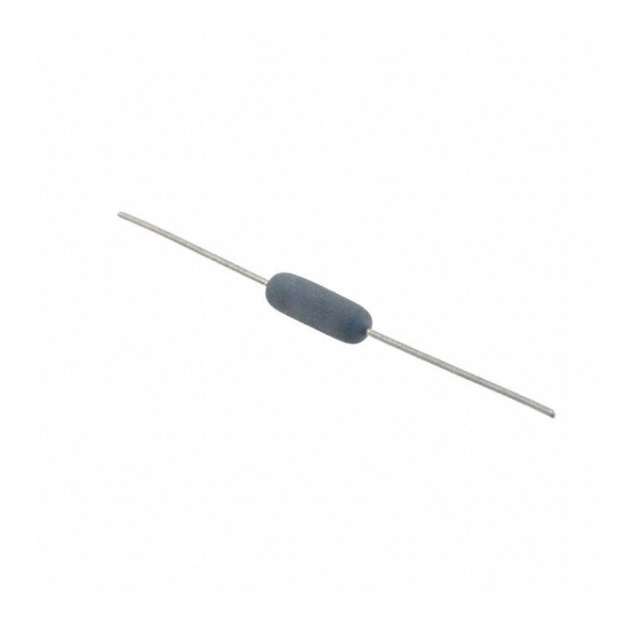

WW3BT1R00

Manufacturer :

Stackpole Electronics, Inc.

Product Category :

Through Hole Resistors

Rated Power Dissipation (P) :

3.2 W

Tolerance :

±0.1%

Rated Temperature :

70 °C

Technology :

Wire Wound

JESD-609 Code :

e3

Package :

Digi-Reel?

Maximum Operating Temperature :

+ 350 C

Construction :

Axial

Terminal Shape :

Wire

Minimum Operating Temperature :

- 55 C

Number of Terminals :

2

Manufacturer :

SEI Stackpole Electronics Inc

Length :

14.22 mm

Package / Case :

Axial

Product Status :

Active

Termination Style :

Axial

Features :

Moisture Resistant

Size / Dimension :

0.187" Dia x 0.560" L (4.75mm x 14.22mm)

Terminal Finish :

Matte Tin (Sn)

Resistor Type :

FIXED RESISTOR

Series :

WW

Package Length :

14.22 mm

Power (Watts) :

3W

Lead Diameter :

0.81 mm

Number of Terminations :

2

Composition :

Wirewound

Diameter :

4.75 mm

ECCN Code :

EAR99

Height - Seated (Max) :

-

Factory Lead Time :

18 Weeks

Mounting Feature :

THROUGH HOLE MOUNT

Reach Compliance Code :

Compliant

HTS Code :

8533.21.00.80

Power Rating :

3 W

Resistance :

1 Ohms

Failure Rate :

-

Operating Temperature :

-55°C ~ 350°C

Temperature Coefficient :

±50ppm/°C

Packing Method :

TR, 11 INCH

Surface Mount :

No

Application :

High Power

Pbfree Code :

yes

Supplier Device Package :

Axial
