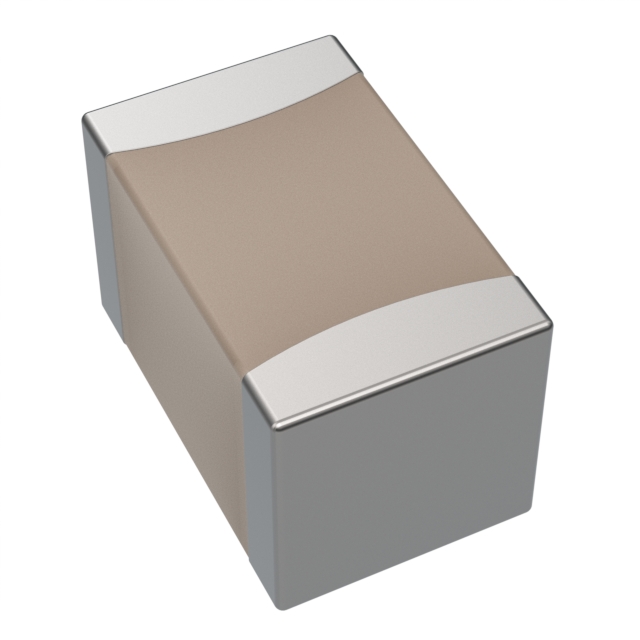

WLBD2012HCU601TH

Manufacturer :

Walsin Technology

Product Category :

Ferrite Beads and Chips

Height :

0.9 mm

Shielding :

Shielded

Brand :

Walsin

Packaging :

MouseReel

Package / Case :

0805 (2012 Metric)

Impedance :

600 Ohms

Maximum Operating Temperature :

+ 125 C

Height (Max) :

0.026" (0.65mm)

Mounting Type :

Surface Mount

Termination :

Flexible (Soft)

Impedance @ Frequency :

600 Ohms @ 100 MHz

Product Status :

Active

Current Rating (Max) :

2A

Product :

Ferrite Chip Beads

Number of Channels :

1 Channel

Size / Dimension :

0.079" L x 0.049" W (2.00mm x 1.25mm)

Length :

2 mm

Termination Style :

SMD/SMT

Minimum Operating Temperature :

- 55 C

Ratings :

-

Subcategory :

Ferrites

RoHS :

Details

Number of Lines :

1

Package :

Digi-Reel?

Width :

1.25 mm

Series :

-

Manufacturer :

Walsin

Filter Type :

Power Line

Tolerance :

25 %

Product Type :

Ferrite Beads

DC Resistance (DCR) (Max) :

90mOhm

Product Category :

Ferrite Beads

Test Frequency :

100 MHz

Number of Elements :

1 Element

Operating Temperature :

-55°C ~ 125°C
