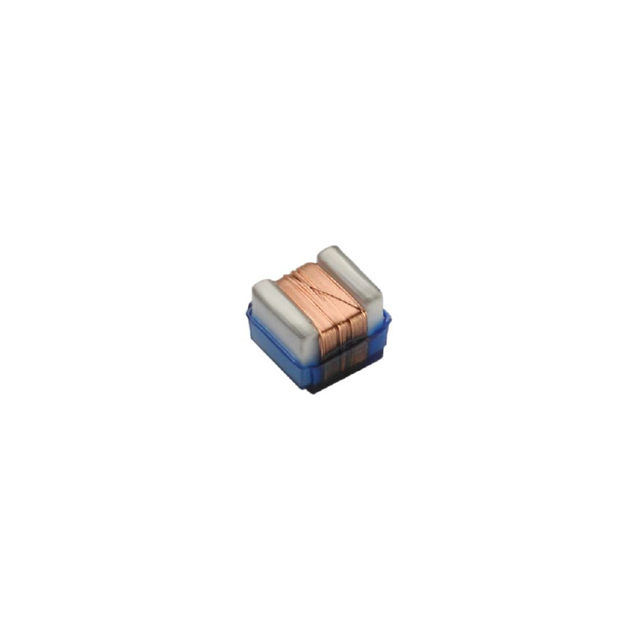

WL03JT5N6

Manufacturer :

Viking Tech

Product Category :

Fixed Inductors

Tolerance :

±5%

DC Resistance (DCR) :

170mOhm Max

Frequency - Self Resonant :

5.8GHz

Inductor Type :

GENERAL PURPOSE INDUCTOR

Reach Compliance Code :

Unknown

Terminal Shape :

ONE SURFACE

Shielded :

No

Package :

Tape and Reel (TR)

Test Frequency :

250 MHz

Manufacturer :

Viking Technology

Q @ Freq :

20 @ 250MHz

Material - Core :

Ceramic

Supplier Device Package :

0603

Number of Functions :

1

Quality Factor-Min (at L-nom) :

20

DC Resistance :

0.17 Ω

Current Rating (Amps) :

700 mA

Package Height :

1.02 mm

Product Status :

Active

Shape/Size Description :

RECTANGULAR PACKAGE

Mounting Type :

Surface Mount

Shielding :

Unshielded

Type :

Drum Core, Wirewound

JESD-609 Code :

e3

Surface Mount :

yes

Inductance :

5.6 nH

Height - Seated (Max) :

0.040" (1.02mm)

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Package / Case :

0603 (1608 Metric)

Current - Saturation (Isat) :

-

Reference Standard :

AEC-Q200

Packing Method :

TR

Series :

WL

Inductor Application :

RF INDUCTOR

Case/Size Code :

0704

Core Material :

Ceramic

Number of Terminals :

2

Package Length :

1.8 mm

Construction :

Chip

Size / Dimension :

0.071" L x 0.044" W (1.80mm x 1.12mm)

ECCN Code :

EAR99

Rated Current-Max :

0.7 A

HTS Code :

8504.50.80.00

Operating Temperature :

-40°C ~ 125°C

Terminal Placement :

DUAL ENDED

Inductance Frequency - Test :

250 MHz

Inductance-Nom (L) :

0.0056 µH

Features :

-

Package Width :

1.12 mm

Ratings :

AEC-Q200
