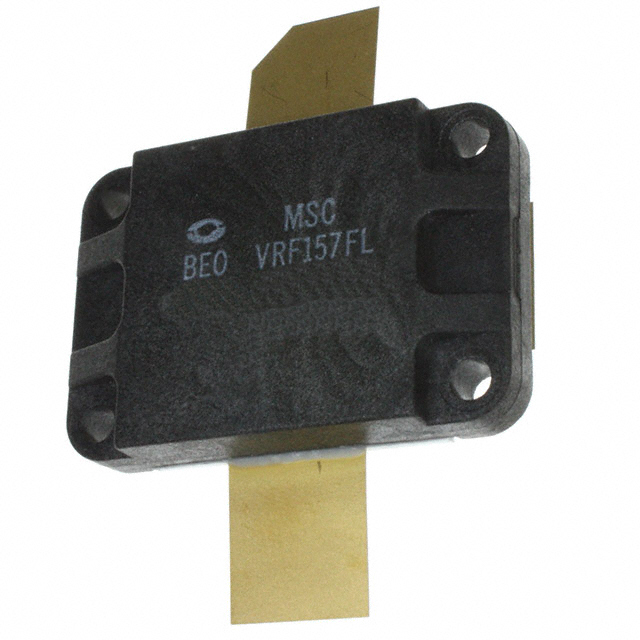

VRF157FL

Manufacturer :

Microchip Technology

Product Category :

Transistors - FETs, MOSFETs - RF

Factory Lead Time :

32 Weeks

Package / Case :

T2

RoHS Status :

RoHS Compliant

Voltage - Test :

50V

Transistor Type :

N-Channel

Number of Pins :

4

Transistor Application :

AMPLIFIER

Radiation Hardening :

No

Configuration :

Single

Pin Count :

2

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Terminal Position :

Dual

Terminal Finish :

TIN SILVER COPPER

JESD-609 Code :

e1

Case Connection :

SOURCE

Number of Terminations :

2

Packaging :

Tube

Gain :

21dB

Current - Test :

800mA

ECCN Code :

EAR99

Mount :

Screw

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lifecycle Status :

IN PRODUCTION (Last Updated: 1 month ago)

Power - Output :

600W

Max Operating Temperature :

200°C

Min Operating Temperature :

-65°C

Terminal Form :

Flat

Voltage - Rated :

170V

Current Rating :

60A

Frequency :

80MHz

Published :

1998

Operating Mode :

ENHANCEMENT MODE

JESD-30 Code :

R-CDFM-F2

Current Rating (Amps) :

4mA

Number of Elements :

1
