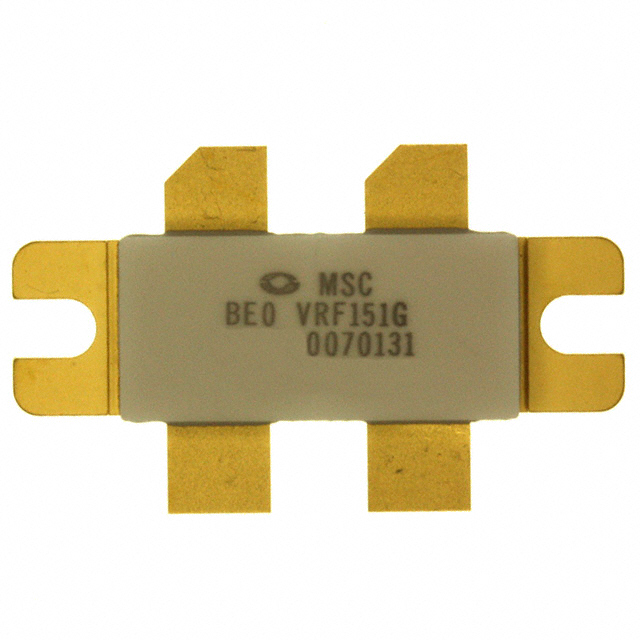

VRF151G

Manufacturer :

Microchip Technology

Product Category :

Transistors - FETs, MOSFETs - RF

JESD-30 Code :

R-CDFM-F4

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Number of Terminations :

4

Current Rating :

36A

RoHS Status :

RoHS Compliant

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Voltage - Rated :

170V

Mount :

Screw

Transistor Application :

AMPLIFIER

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Qualification Status :

Not Qualified

Pin Count :

5

Package / Case :

4-SMD

Max Power Dissipation :

300W

Number of Pins :

5

Frequency :

175MHz

JESD-609 Code :

e1

Factory Lead Time :

27 Weeks

Terminal Form :

Flat

Current - Test :

500mA

Gate to Source Voltage (Vgs) :

40V

Configuration :

COMMON SOURCE, 2 ELEMENTS

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Transistor Type :

2 N-Channel (Dual) Common Source

Max Operating Temperature :

200°C

ECCN Code :

EAR99

Operating Mode :

ENHANCEMENT MODE

Continuous Drain Current (ID) :

36A

Packaging :

Box

Number of Elements :

1

Min Operating Temperature :

-65°C

Pbfree Code :

yes

Voltage - Test :

50V

Gain :

16dB

Lifecycle Status :

SAMPLING (Last Updated: 3 weeks ago)

Drain Current-Max (Abs) (ID) :

40A
