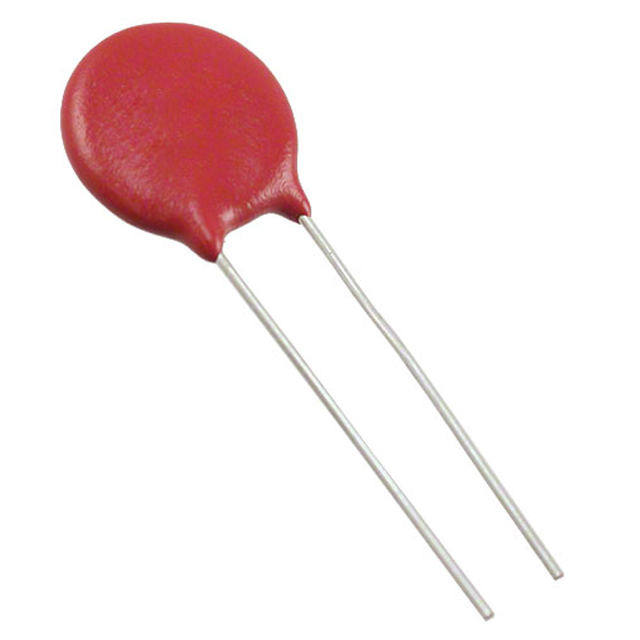

V82ZA12P

Manufacturer :

Littelfuse

Product Category :

Temperature Coefficient :

0.05 ppm/°C

Lead Pitch :

8.5mm

HTS Code :

8533.40.40.00

Width :

5.6mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Output Current :

4.5kA

Operating Temperature :

-55°C~85°C TA

Depth :

5.6mm

Varistor Voltage :

91V

Mounting Type :

Through Hole

REACH SVHC :

Unknown

Packaging :

Bulk

Max Surge Current :

4.5kA

Pbfree Code :

yes

Current Rating :

50A

Thickness :

5.6mm

RoHS Status :

ROHS3 Compliant

Published :

2005

Max Voltage Rating (DC) :

68V

Max Voltage Rating (AC) :

50V

Lead/Base Style :

Radial

Voltage - Rated DC :

68V

Varistor Voltage (Max) :

90.2V

Number of Circuits :

1

Lead Free :

Lead Free

Resistor Type :

VARISTOR

Mount :

Radial, Through Hole

Clamping Current :

50A

Terminal Finish :

Matte Tin (Sn)

Diameter :

14mm

Capacitance @ Frequency :

3380pF @ 1MHz

ECCN Code :

EAR99

Varistor Voltage (Min) :

73.8V

Energy :

15J

Factory Lead Time :

14 Weeks

Series :

ZA

Capacitance :

2.5nF

Voltage - Rated AC :

50V

Clamping Voltage :

145V

Tolerance :

10%

Rated Power Dissipation (P) :

0.6W

Package / Case :

Disc 14mm

Terminal Shape :

Wire

JESD-609 Code :

e3

Number of Terminations :

2

Varistor Voltage (Typ) :

82V

Lead Length :

25.4mm
