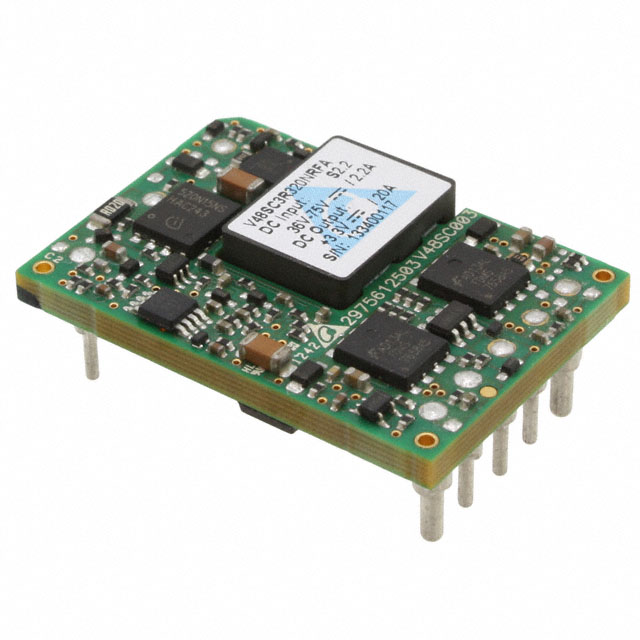

V48SC3R320NRFA

Manufacturer :

Delta Electronics

Product Category :

Radiation Hardening :

No

Voltage - Input (Max) :

75V

Current - Output (Max) :

20A

Height :

12.7mm

Operating Temperature :

-40°C~85°C

Output Power :

66W

Width :

22.86mm

Applications :

ITE (Commercial)

Mount :

Through Hole

Series :

Delphi V48SC (66W)

Max Output Current :

20A

RoHS Status :

ROHS3 Compliant

Max Input Voltage (DC) :

75V

Power (Watts) :

66W

Size / Dimension :

1.30Lx0.90W x 0.50 H 33.0mmx22.9mmx12.7mm

Control Features :

Enable, Active Low

Length :

33.02mm

Package / Case :

8-DIP Module, 1/16 Brick

Max Input Voltage :

75V

Number of Outputs :

1

Voltage - Output 1 :

3.3V

Lead Free :

Lead Free

Feature :

Remote On/Off, OCP, OTP, OVP, UVLO

Output Voltage :

3.3V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Operating Temperature :

-40°C

Efficiency :

91%

Mounting Type :

Through Hole

Type :

Isolated Module

Output Current :

20A

Current - Output 1 :

20A

Packaging :

Bulk

Voltage - Input (Min) :

36V

Min Input Voltage :

36V

Min Input Voltage (DC) :

36V

Factory Lead Time :

24 Weeks

Max Power Dissipation :

66W

Max Operating Temperature :

85°C

Voltage - Isolation :

1.5kV
