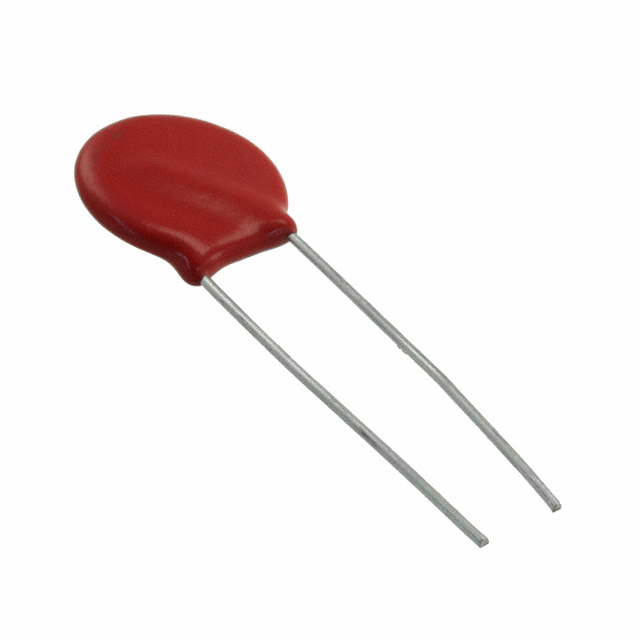

V18ZA3P

Manufacturer :

Littelfuse

Product Category :

Factory Lead Time :

14 Weeks

Thickness :

5mm

REACH SVHC :

Unknown

Capacitance :

11nF

Pbfree Code :

yes

Varistor Voltage :

21.6V

Clamping Voltage :

36V

Terminal Finish :

Matte Tin (Sn)

Lead Free :

Lead Free

Max Voltage Rating (AC) :

10V

Height :

20mm

Published :

2005

Clamping Current :

10A

Voltage - Rated DC :

14V

Temperature Coefficient :

0.05 ppm/°C

Package / Case :

Disc 14mm

Packaging :

Bulk

Resistor Type :

VARISTOR

Lead/Base Style :

Radial

Max Surge Current :

1kA

JESD-609 Code :

e3

RoHS Status :

ROHS3 Compliant

Series :

ZA

Mount :

Radial, Through Hole

Depth :

5mm

Max Voltage Rating (DC) :

14V

Max Output Current :

1kA

Varistor Voltage (Min) :

16.2V

Varistor Voltage (Typ) :

18V

Energy :

3.5J

HTS Code :

8533.40.40.00

Rated Power Dissipation (P) :

0.6W

ECCN Code :

EAR99

Lead Length :

25.4mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

2

Operating Temperature :

-55°C~85°C TA

Mounting Type :

Through Hole

Diameter :

14mm

Voltage - Rated AC :

10V

Width :

5mm

Capacitance @ Frequency :

18870pF @ 1MHz

ESD Protection :

No

Varistor Voltage (Max) :

19.8V

Current Rating :

10A

Terminal Shape :

Wire

Lead Pitch :

8.5mm

Number of Circuits :

1
