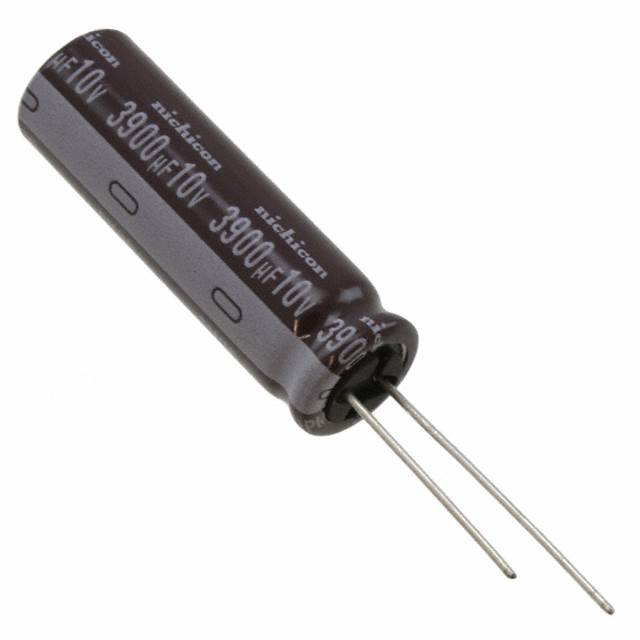

UPM1A392MHD

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Series :

UPM

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8532.22.00

Impedance :

24mOhm

Lifetime @ Temp :

5000 Hrs @ 105°C

Mounting Type :

Through Hole

Applications :

GENERAL PURPOSE

Ripple Current @ Low Frequency :

2.21A @ 120Hz

JESD-609 Code :

e3

Lead Spacing :

0.197 5.00mm

Leakage Current :

1.17mA

Tan Delta :

0.25

Polarization :

Polar

Number of Terminations :

2

Factory Lead Time :

17 Weeks

Height Seated (Max) :

1.654 42.00mm

Terminal Finish :

Matte Tin (Sn)

ECCN Code :

EAR99

Radiation Hardening :

No

Tolerance :

±20%

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Terminal Shape :

Wire

Diameter :

12.5mm

Termination :

Radial

Package / Case :

Radial, Can

Operating Temperature :

-55°C~105°C

Feature :

GENERAL PURPOSE

Published :

2015

Life (Hours) :

5000 hours

Ripple Current :

2.12A

Capacitance :

3900μF

Size / Dimension :

0.492Dia 12.50mm

Height :

40mm

Pbfree Code :

yes

Mount :

Through Hole

RoHS Status :

ROHS3 Compliant

Packaging :

Bulk

Lead Pitch :

5mm

Ripple Current @ High Frequency :

2.46A @ 10kHz

Voltage - Rated DC :

10V

Dielectric Material :

ALUMINUM (WET)
