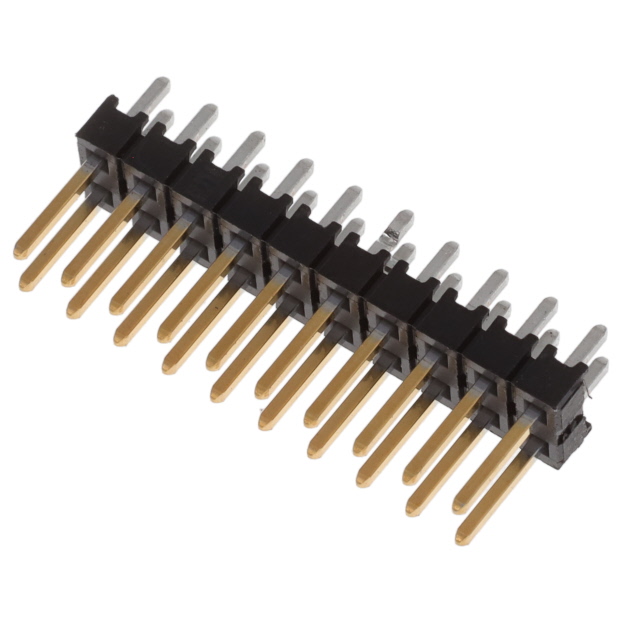

TSW-110-07-S-D-LL

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Filter Feature :

No

Plating Thickness :

30μin

Published :

2016

Depth :

5.08mm

MIL Conformance :

No

Fastening Type :

Push-Pull

Option :

GENERAL PURPOSE

IEC Conformance :

No

DIN Conformance :

No

Factory Lead Time :

3 Weeks

Number of Rows :

2

Max Current Rating :

7.6A

Connector Type :

Header

Insulation Color :

Black

Pitch - Mating :

0.100 2.54mm

Number of Positions :

20

JESD-609 Code :

e3

Additional Feature :

E.L.P.

Max Voltage Rating (AC) :

550V

Contact Type :

Male Pin

Contact Length - Mating :

0.230 5.84mm

Housing Material :

Polyester

Contact Finish - Mating :

Gold

Number Of PCB Rows :

2

Insulation Material :

Polybutylene Terephthalate (PBT)

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Shrouding :

Unshrouded

Pbfree Code :

yes

Body Breadth :

0.1 inch

Overall Contact Length :

0.430 10.92mm

Operating Temperature :

-55°C~125°C

Contact Material :

Phosphor Bronze

Reliability :

COMMERCIAL

Number of Conductors :

ONE

Material Flammability Rating :

UL94 V-0

Contact Shape :

Square

Length :

25.4mm

Orientation :

Straight

Packaging :

Bulk

Mixed Contacts :

No

Mounting Type :

Through Hole

PCB Contact Pattern :

RECTANGULAR

Contact Length - Post :

0.100 2.54mm

Contact Finish - Post :

Tin

Mating Contact Pitch :

0.1 inch

Gender :

Male

Series :

TSW

RoHS Status :

ROHS3 Compliant

Termination :

Kinked Pin, Solder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Height :

0.100 2.54mm

Reference Standard :

UL

Style :

Board to Board or Cable

Row Spacing - Mating :

0.100 (2.54mm)

Number of Positions Loaded :

All
