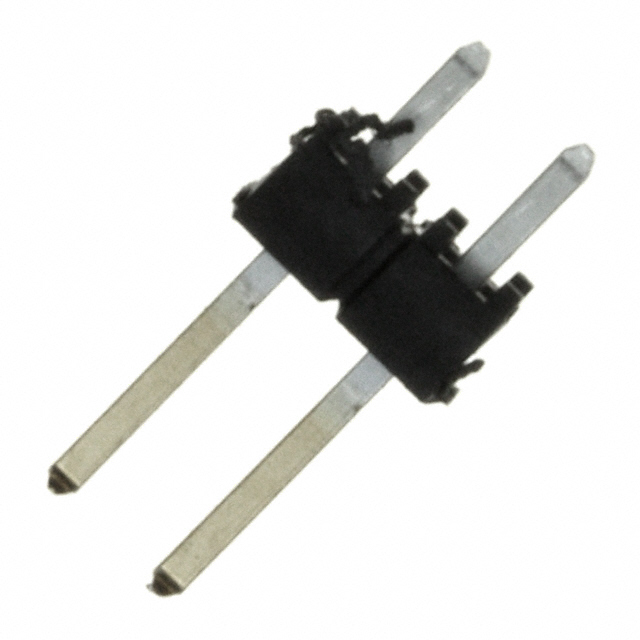

TSW-101-23-S-D

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Orientation :

Straight

JESD-609 Code :

e3

Termination :

Kinked Pin, Solder

Style :

Board to Board or Cable

Body Breadth :

0.1 inch

Insulation Color :

Black

Depth :

5.08mm

Number of Conductors :

ONE

Fastening Type :

Push-Pull

Shrouding :

Unshrouded

Length :

2.54mm

Contact Material :

Phosphor Bronze

Mixed Contacts :

No

Number of Positions Loaded :

All

Number of Positions :

2

Number of Rows :

2

Gender :

Male

Filter Feature :

No

IEC Conformance :

No

Published :

2011

Overall Contact Length :

0.445 11.30mm

MIL Conformance :

No

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Contact Type :

Male Pin

Insulation Height :

0.100 2.54mm

PCB Contact Pattern :

RECTANGULAR

Contact Finish - Mating :

Gold

Reliability :

COMMERCIAL

Mating Contact Pitch :

0.1 inch

Plating Thickness :

30μin

Contact Length - Post :

0.115 2.92mm

Max Voltage Rating (AC) :

550V

Factory Lead Time :

3 Weeks

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Current Rating :

7.6A

Connector Type :

Header

Packaging :

Bulk

Operating Temperature :

-55°C~125°C

Mounting Type :

Through Hole

Pbfree Code :

yes

Contact Length - Mating :

0.230 5.84mm

Option :

GENERAL PURPOSE

Series :

TSW

Housing Material :

Polyester

Reference Standard :

UL

Insulation Material :

Polybutylene Terephthalate (PBT)

Contact Finish - Post :

Tin

Material Flammability Rating :

UL94 V-0

RoHS Status :

ROHS3 Compliant

Number Of PCB Rows :

2

Row Spacing - Mating :

0.100 (2.54mm)

Contact Shape :

Square
