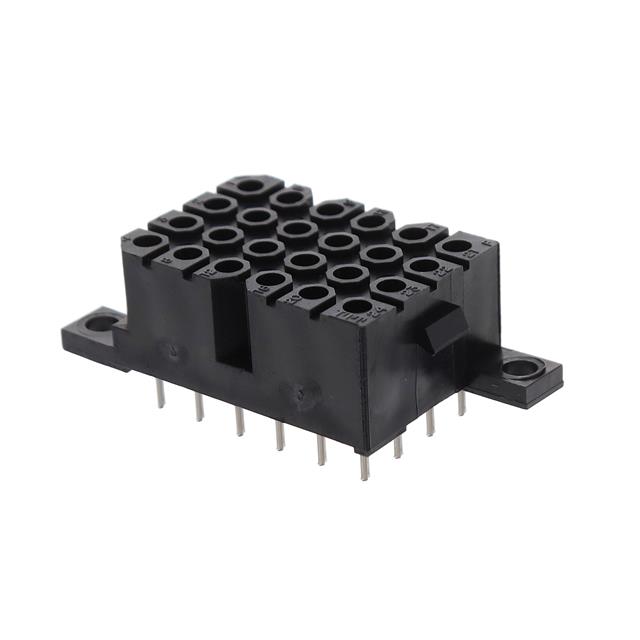

TST24RB06T
Or copy the link below:
- Mfr.Part #
- TST24RB06T
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 24POS 0.2 TIN PCB
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Type :
- Female Socket
- Connector Type :
- Receptacle
- Feature :
- Mounting Flange
- Pbfree Code :
- yes
- Insulation Height :
- 0.531 13.50mm
- ECCN Code :
- EAR99
- Series :
- Trident Rectangular
- Contact Finish Thickness - Mating :
- -
- Factory Lead Time :
- 15 Weeks
- Contact Length - Post :
- 0.224 5.70mm
- Mounting Style :
- SMD/SMT
- Gender :
- Receptacle
- Current Rating (Amps) :
- -
- Product Type :
- Automotive Connectors
- Material Flammability Rating :
- UL94 V-0
- Length :
- 45.6mm
- Number of Positions Loaded :
- All
- Mounting Type :
- Through Hole
- Insulation Resistance :
- 5GOhm
- Base Product Number :
- TST24
- Contact Shape :
- Circular
- Housing Material :
- Nylon
- Brand :
- ITT Cannon
- Max Voltage Rating (AC) :
- 250V
- Subcategory :
- Automotive Connectors
- Voltage - Rated DC :
- 250V
- Package :
- Bulk
- Number of Positions :
- 24
- Published :
- 2011
- Features :
- Mounting Flange
- Termination :
- Solder
- Max Current Rating :
- 13A
- Product :
- Connectors
- Contact Finish Thickness - Post :
- -
- Contact Material :
- NOT SPECIFIED
- Mount :
- Through Hole
- Contact Finish - Post :
- -
- Type :
- Receptacle
- RoHS Status :
- RoHS Compliant
- Pitch :
- 5.08 mm
- Manufacturer :
- ITT Cannon
- RoHS :
- Details
- Row Spacing - Mating :
- 0.200 (5.08mm)
- Contact Finish - Mating :
- Tin
- Voltage Rating :
- -
- Number of Rows :
- 4
- Mated Stacking Heights :
- -
- Insulation Material :
- Polyamide (PA), Nylon
- Termination Style :
- Solder
- Pitch - Mating :
- 0.200 5.08mm
- Product Category :
- Automotive Connectors
- Style :
- Board to Board or Cable
- Accessory Type :
- -
- Product Status :
- Active
- Orientation :
- Straight
- Ingress Protection :
- -
- Insulation Color :
- Black
- Packaging :
- Bulk
- Contact Gender :
- Socket
- Fastening Type :
- Latch Holder
- Operating Temperature :
- -40°C~105°C
- Depth :
- 21.3mm
- Applications :
- Automotive, General Purpose
- REACH SVHC :
- No SVHC
- Connector Shell Size :
- -
- Contact Plating :
- Tin Plated Contacts
- Datasheets
- TST24RB06T
TST24RB06T Documents
4 Rows Receptacle Solder NOT SPECIFIED Through Hole Bulk Tin Polyamide (PA), Nylon 24 Positions Female Socket
TST24RB06T Overview
You'll get Receptacle packages.A Through Hole mounting type is specified for the device.A Bulk case is used for packaging.The product belongs to the Trident Rectangular Series.There's an application for it called Automotive, General Purpose.A number of aspects of its Mounting Flange feature make it more powerful.By Through Hole it's mounted.In this case, the device runs at -40°C~105°C Operating Temperature.
TST24RB06T Features
Trident Rectangular series
TST24RB06T Applications
There are a lot of ITT Cannon, LLC
TST24RB06T Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
