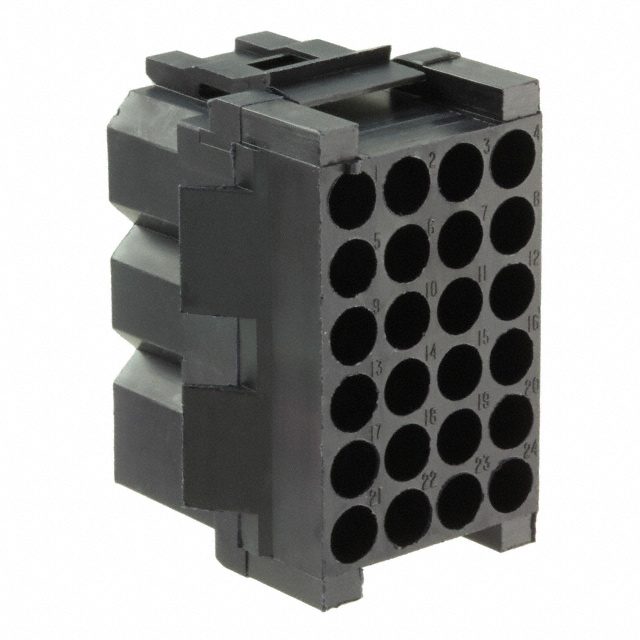

TST24RA00
Or copy the link below:
- Mfr.Part #
- TST24RA00
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 24POS 5.08MM
- Stock
- 119
- In Stock ：
- 119
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- Rectangular Connector Housings
- Pbfree Code :
- yes
- Insulation Resistance :
- 5GOhm
- Pitch :
- 0.200 5.08mm
- RoHS :
- Details
- Length :
- 39mm
- Product :
- Connectors
- Termination :
- Crimp
- RoHS Status :
- RoHS Compliant
- REACH SVHC :
- No SVHC
- Features :
- -
- Row Spacing :
- 0.200 (5.08mm)
- Max Operating Temperature :
- 105°C
- Max Current Rating :
- 13A
- For Use With :
- Trident T2P or T3P Contacts
- Product Type :
- Automotive Connectors
- Base Product Number :
- TST24
- Contact Type :
- MALE OR FEMALE
- Manufacturer :
- ITT Cannon
- Product Category :
- Automotive Connectors
- Number of Rows :
- 4
- Fastening Type :
- Latch Holder
- ECCN Code :
- EAR99
- Package :
- Bulk
- Max Voltage Rating (AC) :
- 250V
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Termination Style :
- Crimp
- Orientation :
- Straight
- Mounting Type :
- Panel Mount, Snap-In
- Packaging :
- Bulk
- Voltage - Rated DC :
- 250V
- Type :
- Receptacle
- Published :
- 2001
- Mounting Style :
- Panel Mount
- Subcategory :
- Automotive Connectors
- Product Status :
- Active
- Brand :
- ITT Cannon
- Gender :
- Receptacle
- Accessory Type :
- -
- Number of Positions :
- 24
- Note :
- Contacts Not Included
- Factory Lead Time :
- 8 Weeks
- Contact Termination :
- Crimp and Solder
- Housing Material :
- Nylon
- Connector Type :
- Receptacle
- Min Operating Temperature :
- -55°C
- Color :
- Black
- Series :
- Trident Rectangular
- Depth :
- 25.2mm
- Mount :
- Panel, Snap in
- Datasheets
- TST24RA00
4 Rows Receptacle Bulk Black 24 Positions Panel Mount, Snap-In Male or Female Crimp and Solder Trident Rectangular Nylon
TST24RA00 Overview
The packaging is Receptacle.Mounting type is Panel Mount, Snap-In.To package the product, we use a Bulk case.This product is from the Trident Rectangular Series.Mounted by Panel, Snap in.
TST24RA00 Features
Trident Rectangular series
TST24RA00 Applications
There are a lot of ITT Cannon, LLC
TST24RA00 Rectangular Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
