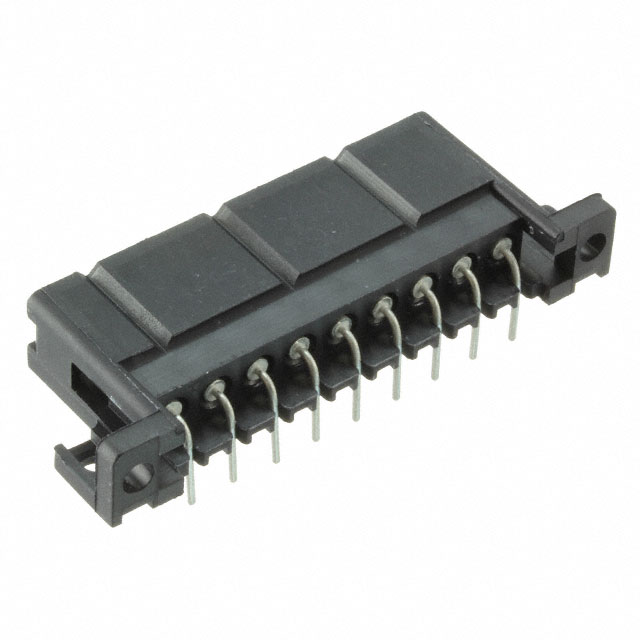

TST09RE01T
Or copy the link below:
- Mfr.Part #
- TST09RE01T
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 9POS 5.08MM
- Stock
- 19,752
- In Stock ：
- 19,752
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- Headers, Male Pins
- Ingress Protection :
- --
- Base Product Number :
- TST09
- Product Status :
- Active
- Connector Type :
- Receptacle
- Insulation Color :
- Black
- Row Spacing - Mating :
- --
- Overall Contact Length :
- --
- Product Category :
- Automotive Connectors
- Manufacturer :
- ITT Cannon
- Contact Plating :
- Tin Plated Contacts
- Feature :
- Mounting Flange
- Voltage - Rated :
- 250V
- Number of Rows :
- 1
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 9
- Insulation Height :
- 0.386 9.80mm
- Series :
- Trident Slimline
- Pitch - Mating :
- 0.200 5.08mm
- Current Rating (Amps) :
- 10A
- Voltage Rating :
- 250V
- Current Rating :
- 10A
- Brand :
- ITT Cannon
- Contact Finish Thickness - Post :
- --
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Style :
- Board to Cable/Wire
- Factory Lead Time :
- 15 Weeks
- Contact Length - Mating :
- --
- Contact Type :
- Male Pin
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Mating :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Product Type :
- Automotive Connectors
- Contact Shape :
- Circular
- RoHS :
- Details
- Contact Finish - Post :
- --
- Subcategory :
- Automotive Connectors
- Packaging :
- Bulk
- Contact Length - Post :
- 0.157 4.00mm
- Applications :
- --
- Features :
- Mounting Flange
- Mated Stacking Heights :
- --
- Termination :
- Solder
- Contact Finish Thickness - Mating :
- --
- Insulation Material :
- Polyamide (PA), Nylon
- Operating Temperature :
- -40°C~105°C
- Fastening Type :
- Latch Holder
- Number of Positions Loaded :
- All
- Published :
- 2006
- Contact Material :
- NOT SPECIFIED
- Package :
- Bulk
- Mounting Type :
- Through Hole, Right Angle
- Datasheets
- TST09RE01T
TST09RE01T Documents
Trident Slimline Series 1-Row Receptacle Solder NOT SPECIFIED Bulk Through Hole, Right Angle Tin Polyamide (PA), Nylon 9-Position Board to Cable/Wire 0.386 9.80mm Height
TST09RE01T Overview
Packaging for this item is Receptacle.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Trident Slimline Series.A possible application for the device is --.In many ways, its Mounting Flange feature makes it more powerful.In this case, the device operates at -40°C~105°C Operating Temperature.
TST09RE01T Features
Trident Slimline series
TST09RE01T Applications
There are a lot of ITT Cannon, LLC
TST09RE01T Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
