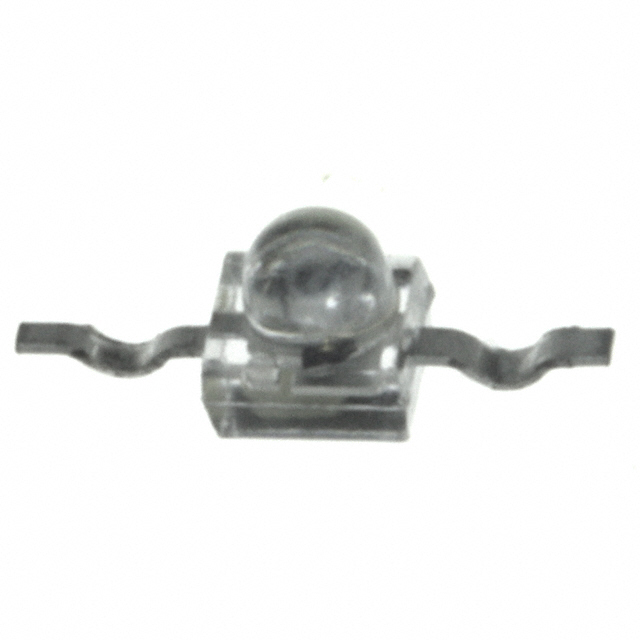

TSML1030
Or copy the link below:
- Mfr.Part #
- TSML1030
- Manufacturer
- Vishay
- Package / Case
- 2-SMD, Yoke Bend
- Datasheet
- Download
- Description
- EMITTER IR 940NM 100MA SMD
- Stock
- 1,158
- In Stock ：
- 1,158
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Vishay
- Product Category :
- Rise Time :
- 15ns
- Number of Pins :
- 2
- Wavelength :
- 940nm
- Mounting Type :
- Surface Mount
- Max Operating Temperature :
- 85°C
- Test Current :
- 20mA
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Viewing Angle :
- 24°
- RoHS Status :
- ROHS3 Compliant
- Lens Style :
- Circular, Diffused
- Power Rating :
- 190mW
- Reverse Voltage :
- 5V
- Contact Plating :
- Tin
- Type :
- Infrared (IR)
- Voltage - Forward (Vf) (Typ) :
- 1.2V
- Forward Current :
- 100mA
- Forward Voltage :
- 1.2V
- Package / Case :
- 2-SMD, Yoke Bend
- Reverse Voltage (DC) :
- 5V
- Depth :
- 2mm
- Power Dissipation :
- 190mW
- Mount :
- Surface Mount
- Number of Elements :
- 1
- Radiant Intensity (Ie) Min @ If :
- 3mW/sr @ 20mA
- Width :
- 2mm
- Operating Temperature :
- -40°C~85°C TA
- Factory Lead Time :
- 14 Weeks
- Orientation :
- Top View
- Height :
- 2.7mm
- Current - DC Forward (If) (Max) :
- 100mA
- Length :
- 2.5mm
- Number of LEDs :
- 1
- Packaging :
- Tape and Reel (TR)
- Min Operating Temperature :
- -40°C
- Datasheets
- TSML1030
