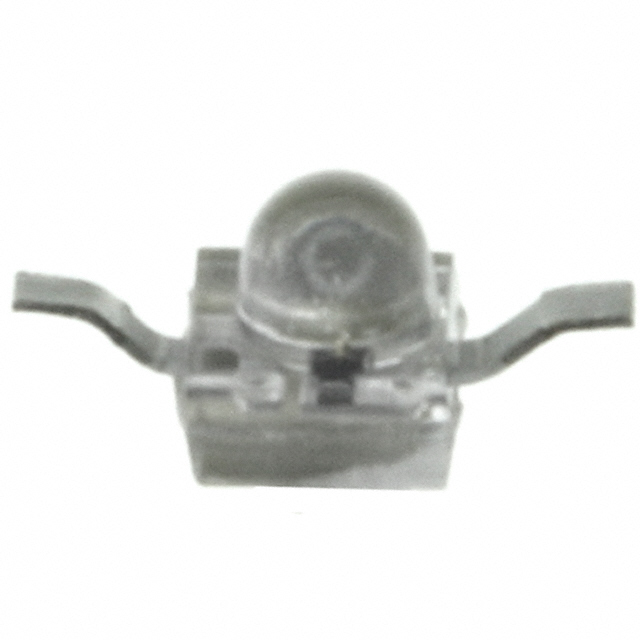

TSML1000

Manufacturer :

Vishay

Product Category :

Power Dissipation :

190mW

Packaging :

Tape and Reel (TR)

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Number of Elements :

1

Package / Case :

2-SMD, Z-Bend

Contact Plating :

Tin

Peak Wavelength :

950 nm

Length :

2.5mm

Rise Time :

800ns

Power Rating :

190mW

Lens Style :

Circular, Diffused

Wavelength :

940nm

Orientation :

Top View

Forward Voltage :

1.2V

Radiant Intensity (Ie) Min @ If :

3mW/sr @ 20mA

Viewing Angle :

24°

Number of Pins :

2

Lead Free :

Lead Free

Depth :

2mm

Current - DC Forward (If) (Max) :

100mA

REACH SVHC :

Unknown

Voltage - Forward (Vf) (Typ) :

1.2V

Number of LEDs :

1

Voltage - Rated DC :

1.2V

Mount :

Surface Mount

Type :

Infrared (IR)

Radiation Hardening :

No

Operating Temperature :

-40°C~85°C TA

Max Operating Temperature :

85°C

Test Current :

20mA

Factory Lead Time :

12 Weeks

Min Operating Temperature :

-40°C

Reverse Voltage :

5V

RoHS Status :

ROHS3 Compliant

Forward Current :

20mA
