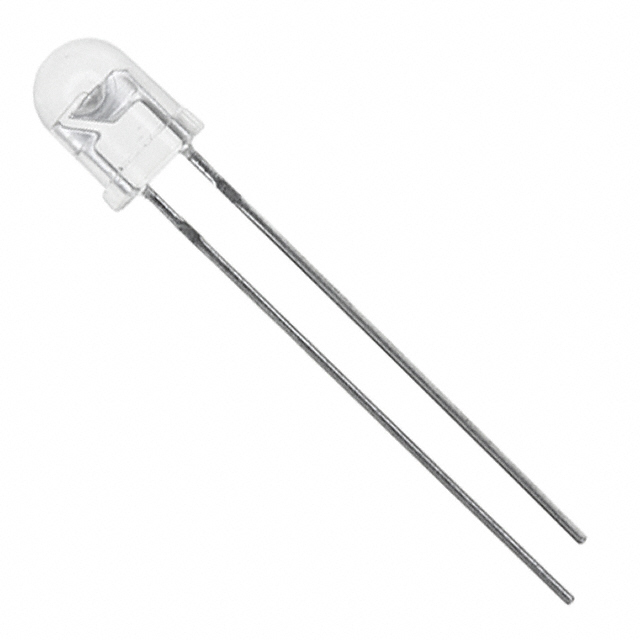

TSAL7600

Manufacturer :

Vishay

Product Category :

Published :

2009

Operating Temperature :

-40°C~85°C TA

Packaging :

Bulk

Radiation Hardening :

No

Voltage - Forward (Vf) (Typ) :

1.35V

Number of Pins :

2

REACH SVHC :

Unknown

Moisture Sensitivity Level (MSL) :

Not Applicable

Operating Supply Voltage :

1.6V

Wavelength :

940nm

Number of Elements :

1

Viewing Angle :

60°

Type :

Infrared (IR)

Orientation :

Top View

Rise Time :

800ns

Color :

Clear

Peak Wavelength :

940 nm

Forward Current :

100mA

Test Current :

100mA

Power Dissipation :

160mW

Power Rating :

210mW

Current - DC Forward (If) (Max) :

100mA

Lens Style :

Circular, Colorless, Diffused

Mounting Type :

Through Hole

RoHS Status :

ROHS3 Compliant

Forward Voltage :

1.35V

Min Operating Temperature :

-40°C

Voltage - Rated DC :

2.6V

Radiant Intensity (Ie) Min @ If :

15mW/sr @ 100mA

Fall Time (Typ) :

800 ns

Max Operating Temperature :

85°C

Lead Free :

Lead Free

Number of LEDs :

1

Package / Case :

Radial, 5mm Dia (T 1 3/4)

Length :

5.8mm

Reverse Voltage :

5V

Mount :

PCB, Through Hole

Depth :

5.8mm
