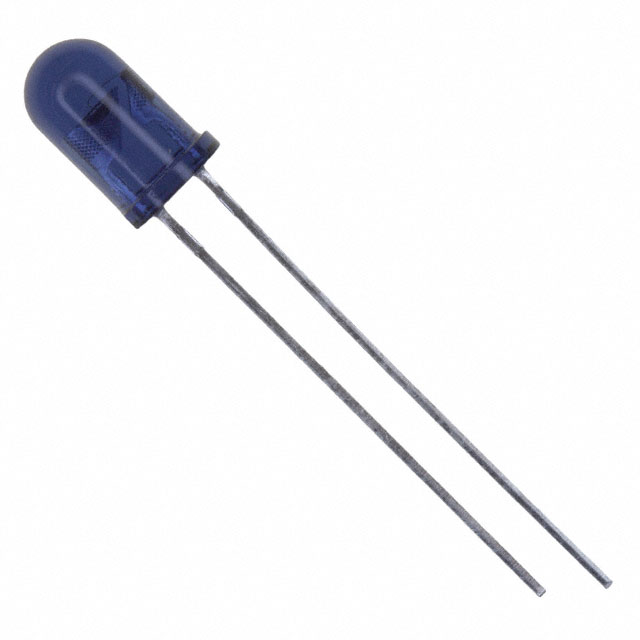

TSAL6200

Manufacturer :

Vishay

Product Category :

Length :

5.8mm

Radiant Intensity (Ie) Min @ If :

40mW/sr @ 100mA

Max Operating Temperature :

85°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Viewing Angle :

34°

Fall Time (Typ) :

800 ns

REACH SVHC :

Unknown

Min Operating Temperature :

-40°C

Forward Current :

100mA

Voltage - Rated DC :

5V

Power Rating :

210mW

Radiation Hardening :

No

Reverse Voltage :

5V

Packaging :

Bulk

Number of Elements :

1

Lens Style :

Circular, Colored, Round

Lead Free :

Lead Free

Test Current :

100mA

Operating Temperature :

-40°C~85°C TA

Factory Lead Time :

14 Weeks

Power Dissipation :

160mW

Forward Voltage :

1.35V

RoHS Status :

ROHS3 Compliant

Number of Pins :

2

Mount :

Through Hole

Operating Supply Voltage :

1.6V

Current - DC Forward (If) (Max) :

100mA

Lead Length :

25.7mm

Package / Case :

Radial, 5mm Dia (T 1 3/4)

Rise Time :

800ns

Mounting Type :

Through Hole

Peak Wavelength :

940 nm

Published :

2005

Orientation :

Top View

Number of LEDs :

1

Max Power Dissipation :

160mW

Depth :

5.8mm

Contact Plating :

Tin

Type :

Infrared (IR)

Wavelength :

940nm

Voltage - Forward (Vf) (Typ) :

1.35V
