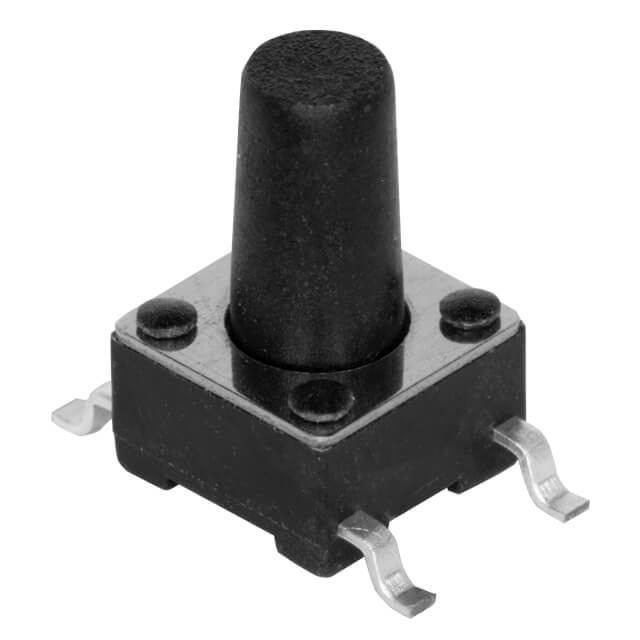

TS04-66-75-BK-160-SMT

Manufacturer :

CUI Devices

Product Category :

Illumination :

Non-Illuminated

Illumination Color :

-

IP Rating :

-

Contact Plating :

Silver

Operating Temperature :

-30°C ~ 80°C

Illumination Type, Color :

-

Mechanical Life :

80,000 Cycles

Power Rating :

-

Series :

TS04

Mounting Type :

Surface Mount

Product Type :

Tactile Switches

Ingress Protection :

-

Illumination Voltage (Nominal) :

-

Product Status :

Active

Operating Force :

160gf

Lamp Type :

-

Features :

-

Package :

Bag

Color :

Black

Type :

Tactile Switch

Actuator Length :

7.5 mm

Contact Rating @ Voltage :

0.05A @ 12VDC

Subcategory :

Switches

Current Rating :

50 mA

Actuator Style :

Button

Termination Style :

Gull wing

Width :

6 mm

Mounting Style :

SMD/SMT

Actuator :

Stem

Height :

7.5 mm

Minimum Operating Temperature :

- 30 C

Actuator Material :

Polyamide (PA66), Nylon 6/6

Switch Function :

Off-Mom

Switch Travel :

0.25mm

Maximum Operating Temperature :

+ 80 C

Circuit :

SPST-NO

Length :

6 mm

Outline :

6.00mm x 6.00mm

Actuator Height off PCB, Vertical :

7.50mm

Contact Form :

SPST

Product :

Tactile Switch

Actuator Type :

Standard

Actuator Length, Right Angle :

-

Actuator Orientation :

Top Actuated
