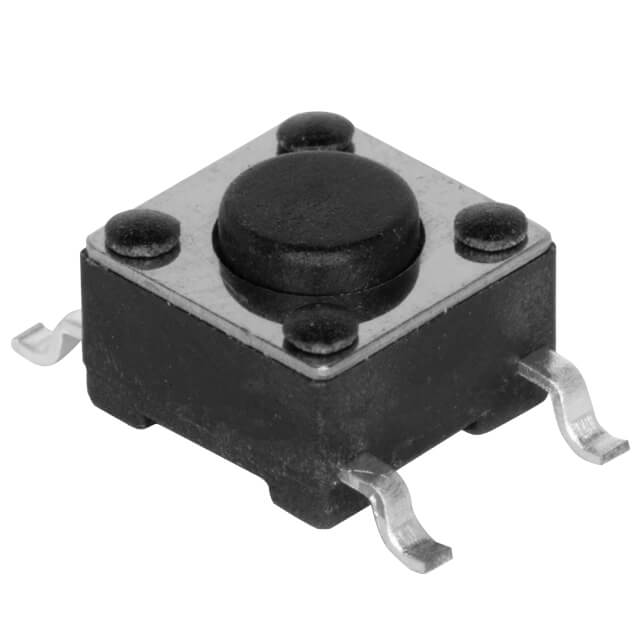

TS04-66-55-BK-260-SMT
Or copy the link below:
- Mfr.Part #
- TS04-66-55-BK-260-SMT
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- 6 X 6 MM, 5.5 MM ACTUATOR HEIGHT
- Stock
- 3,166
- In Stock ：
- 3,166
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Ingress Protection :
- -
- Actuator Length, Right Angle :
- -
- Mounting Style :
- SMD/SMT
- Switch Travel :
- 0.25mm
- Minimum Operating Temperature :
- - 30 C
- Product Category :
- Tactile Switches
- Product Type :
- Tactile Switches
- IP Rating :
- -
- Actuator Height off PCB, Vertical :
- 5.50mm
- Mechanical Life :
- 60,000 Cycles
- Outline :
- 6.00mm x 6.00mm
- Product Status :
- Active
- Switch Function :
- Off-Mom
- Length :
- 6 mm
- Operating Force :
- 260gf
- Manufacturer :
- CUI Devices
- Current Rating :
- 50 mA
- Contact Plating :
- Silver
- Actuator :
- Stem
- Series :
- TS04
- Termination Style :
- Gull wing
- Subcategory :
- Switches
- Lamp Type :
- -
- Actuator Type :
- Standard
- Actuator Length :
- 5.5 mm
- Illumination Type, Color :
- -
- Color :
- Black
- Illumination Voltage (Nominal) :
- -
- Height :
- 5.5 mm
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Features :
- -
- Actuator Orientation :
- Top Actuated
- Type :
- Tactile Switch
- Illumination Color :
- -
- Actuator Style :
- Button
- Brand :
- CUI Devices
- Package :
- Bag
- Product :
- Tactile Switch
- Width :
- 6 mm
- Circuit :
- SPST-NO
- Contact Form :
- SPST
- Power Rating :
- -
- Maximum Operating Temperature :
- + 80 C
- Actuator Material :
- Polyamide (PA66), Nylon 6/6
- Illumination :
- Non-Illuminated
- Mounting Type :
- Surface Mount
- Operating Temperature :
- -30°C ~ 80°C
- Datasheets
- TS04-66-55-BK-260-SMT
