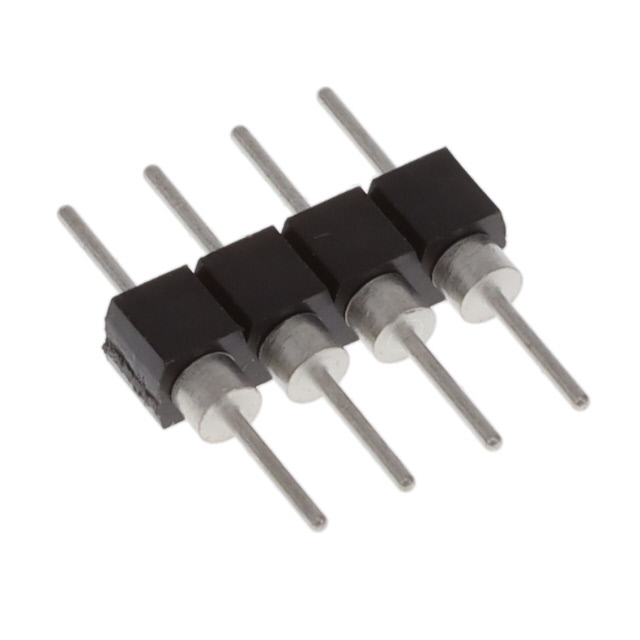

TS-104-T-AA
Or copy the link below:
- Mfr.Part #
- TS-104-T-AA
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 2.54MM
- Stock
- 4,593
- In Stock ：
- 4,593
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Pbfree Code :
- yes
- Number of Positions :
- 4
- Published :
- 2013
- Mixed Contacts :
- No
- Contact Shape :
- Circular
- Orientation :
- Straight
- REACH SVHC :
- No SVHC
- Number of Positions Loaded :
- All
- Packaging :
- Bulk
- Operating Temperature :
- -55°C~105°C
- Max Current Rating :
- 1A
- Insulation Height :
- 0.100 2.54mm
- Mount :
- Through Hole
- Number of Conductors :
- ONE
- Pitch - Mating :
- 0.100 2.54mm
- Plating Thickness :
- 200μin
- Series :
- TS
- Contact Finish - Mating :
- Tin
- Number Of PCB Rows :
- 1
- Factory Lead Time :
- 3 Weeks
- PCB Contact Pattern :
- RECTANGULAR
- Insulation Color :
- Black
- Number of Rows :
- 1
- Shrouding :
- Unshrouded
- Reliability :
- COMMERCIAL
- Contact Material :
- Brass
- Contact Finish Thickness - Mating :
- 200.0μin 5.08μm
- Mounting Type :
- Through Hole
- Reference Standard :
- UL
- Style :
- Board to Board
- Fastening Type :
- Push-Pull
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Filter Feature :
- No
- Insulation Material :
- Polyester, Glass Filled
- DIN Conformance :
- No
- Contact Finish Thickness - Post :
- 200.0μin 5.08μm
- Radiation Hardening :
- No
- Connector Type :
- Header
- Termination :
- Solder
- RoHS Status :
- ROHS3 Compliant
- Option :
- GENERAL PURPOSE
- IEC Conformance :
- No
- Contact Length - Mating :
- 0.166 4.22mm
- Gender :
- Male
- MIL Conformance :
- No
- Contact Length - Post :
- 0.156 3.96mm
- Contact Type :
- Male Pin
- Datasheets
- TS-104-T-AA
TS-104-T-AA Documents
TS Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyester, Glass Filled 4-Position Board to Board 0.100 2.54mm Height
TS-104-T-AA Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number TS belongs to the TS Series.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~105°C.
TS-104-T-AA Features
TS series
TS-104-T-AA Applications
There are a lot of Samtec Inc.
TS-104-T-AA Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
