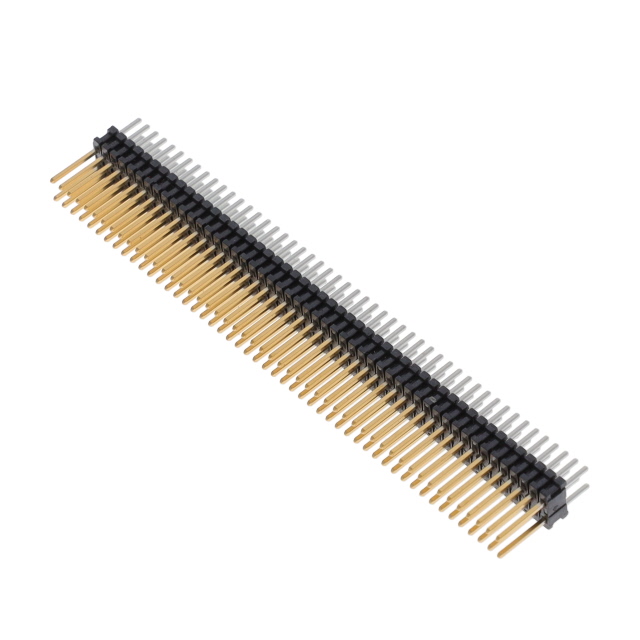

TMS-150-01-S-D

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

IEC Conformance :

No

Reference Standard :

UL

Operating Temperature (Min) :

-55°C

Contact Plating :

Gold

Number of Contacts :

100

Radiation Hardening :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

HTS Code :

8536.69.40.40

ECCN Code :

EAR99

PCB Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

Pbfree Code :

yes

Packaging :

Bulk

Termination :

Solder

Reliability :

COMMERCIAL

Rated Current (Signal) :

5A

Gender :

Male

JESD-609 Code :

e3

DIN Conformance :

No

Connector Type :

BOARD CONNECTOR

Plating Thickness :

30μin

Number of Conductors :

ONE

Factory Lead Time :

3 Weeks

Mixed Contacts :

No

Number of Rows :

2

Pitch :

1.27mm

RoHS Status :

ROHS3 Compliant

Insulation Material :

Nylon

Contact Style :

SQ PIN-SKT

Contact Pattern :

RECTANGULAR

Contact Material :

Phosphor Bronze

Number Of PCB Rows :

2

Insulator Color :

Black

Filter Feature :

No

Body/Shell Style :

Receptacle

Mating Contact Row Spacing :

0.1 inch

Mount :

Through Hole

MIL Conformance :

No

Body Breadth :

0.196 inch
