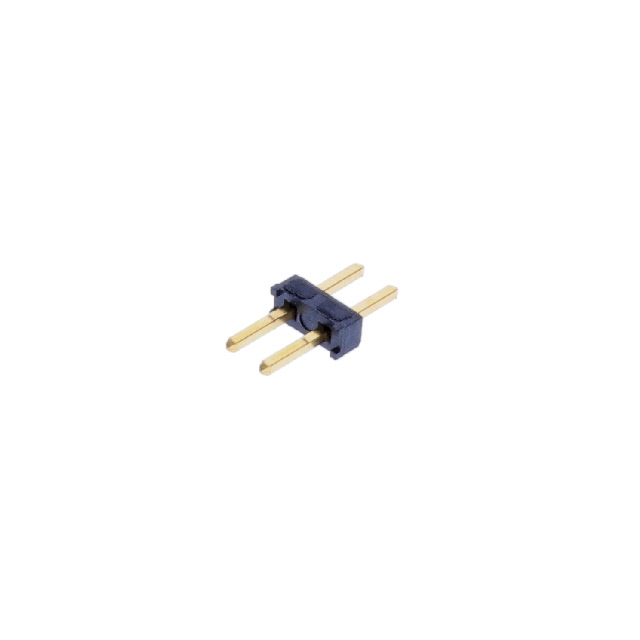

TMM-101-01-G-D

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Plating Thickness :

10μin

Housing Material :

Polymer

HTS Code :

8536.69.40.40

Min Operating Temperature :

-55°C

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Factory Lead Time :

3 Weeks

Termination :

Solder

Connector Type :

BOARD CONNECTOR

JESD-609 Code :

e4

Contact Style :

SQ PIN-SKT

Pbfree Code :

yes

IEC Conformance :

No

Contact Plating :

Gold

Option :

GENERAL PURPOSE

Housing Color :

Black

Filter Feature :

No

Max Operating Temperature :

125°C

Body/Shell Style :

Receptacle

Packaging :

Bulk

Number of Rows :

2

Moisture Sensitivity Level (MSL) :

Not Applicable

Mating Contact Pitch :

0.079 inch

Mounting Option 1 :

LOCKING

Gender :

Male

Mounting Type :

BOARD

ECCN Code :

EAR99

Mating Contact Row Spacing :

0.079 inch

Mixed Contacts :

No

Max Current Rating :

3.9A

Orientation :

RIGHT ANGLE

MIL Conformance :

No

Number of Conductors :

ONE

Contact Material :

Bronze

RoHS Status :

ROHS3 Compliant

Length :

2mm

Total Number of Contacts :

2

Number Of PCB Rows :

2

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Pattern :

RECTANGULAR

Depth :

7.97mm

DIN Conformance :

No

Max Voltage Rating (AC) :

500V

Body Breadth :

0.155 inch
