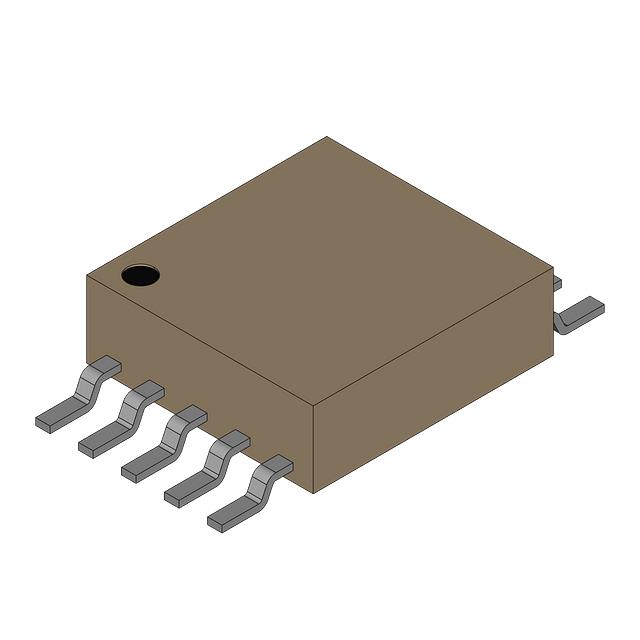

TLV2461MUB

Manufacturer :

Texas Instruments

Product Category :

Instrumentation, OP Amps, Buffer Amps

Current - Input Bias :

14nA

Common Mode Rejection Ratio :

71 dB

Input Offset Voltage (Vos) :

2mV

Slew Rate :

1.6 V/µs

Supply Voltage :

3V

Low-Offset :

No

Radiation Hardening :

No

Architecture :

VOLTAGE-FEEDBACK

Frequency Compensation :

yes

Lead Free :

Contains Lead

Thickness :

1.65mm

Voltage Gain :

109dB

Micropower :

No

Mount :

Surface Mount

Average Bias Current-Max (IIB) :

0.075μA

Min Operating Temperature :

-55°C

Supply Current-Max :

0.65mA

Packing Method :

Tube

Input Offset Current-Max (IIO) :

0.007μA

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Gain Bandwidth Product :

6.4MHz

Pin Count :

10

Power Dissipation :

675mW

Max Operating Temperature :

125°C

Number of Channels :

1

Wideband :

No

Width :

6.35mm

Number of Pins :

10

Terminal Form :

Flat

Height :

2.03mm

Unity Gain BW-Nom :

6400 kHz

Programmable Power :

No

Number of Functions :

1

Min Dual Supply Voltage :

1.35V

Length :

6.35mm

RoHS Status :

RoHS Compliant

Low-Bias :

No

ECCN Code :

EAR99

Terminal Position :

Dual

Screening Level :

38535Q/M;38534H;883B

Temperature Grade :

Military

Max Dual Supply Voltage :

3V

Number of Terminations :

10

Max Supply Voltage :

6V

Amplifier Type :

Operational Amplifier

Min Supply Voltage :

2.7V
