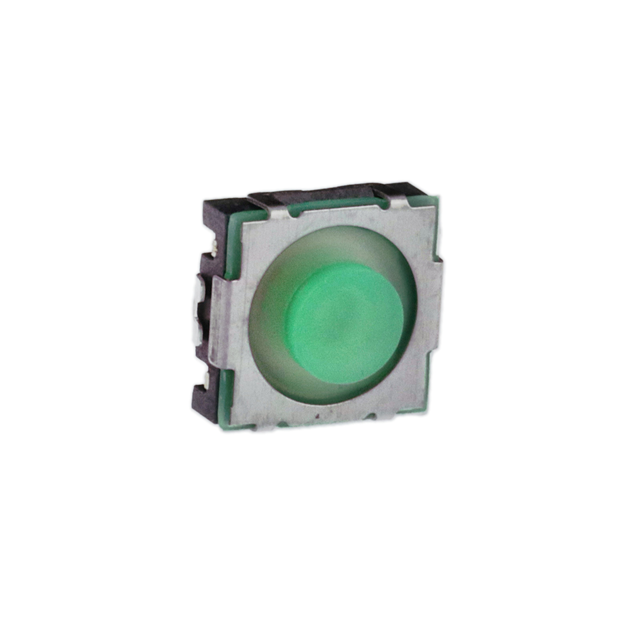

TLS A 100 T3J LFS

Manufacturer :

C&K

Product Category :

Circuit :

SPST-NO

Actuator Material :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Operating Temperature :

-40°C ~ 90°C

Type :

Tactile

Actuator Height off PCB, Vertical :

3.95mm

Actuator Type :

Standard

Outline :

8.40mm x 8.00mm

Length :

8.6 mm

Actuator Orientation :

Top Actuated

Width :

8.4 mm

Height :

3.95 mm

Actuator :

Round

Mounting Style :

SMD/SMT

Termination Style :

J Form Lead

Contact Rating @ Voltage :

0.05A @ 16VDC

Product :

Switches

Switch Travel :

0.90mm

Illumination Type, Color :

-

Features :

-

Ingress Protection :

IP54 - Dust Protected, Water Resistant

Operating Force :

10 N

Mounting Type :

Surface Mount

Actuator Length, Right Angle :

-

Illumination Voltage (Nominal) :

-

Switch Function :

Off-Mom

RoHS :

Details

Current Rating :

800 mA

Minimum Operating Temperature :

- 40 C

Base Product Number :

TLS A 100

Maximum Operating Temperature :

+ 90 C

Mechanical Life :

300,000 Cycles

IP Rating :

IP54

Contact Form :

SPST

Series :

TLS

Illumination :

Non-Illuminated

Product Status :

Active
