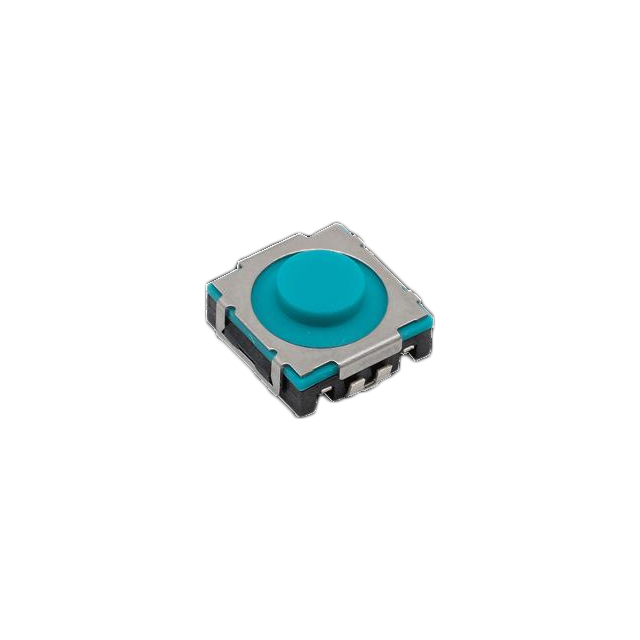

TLS A 040J LFS

Manufacturer :

C&K

Product Category :

Minimum Operating Temperature (°C) :

-40

Actuator Type :

Standard

Termination Style :

J-Bend

Body Height (mm) :

2.6

Contact Form :

SPST

Packaging :

Tape and Reel

Switch Configuration :

N.O.

Power Rating :

0.8 VA

Actuator Height off PCB, Vertical :

3.95mm

Actuator Orientation :

Top Actuated

Features :

-

Length :

8.6 mm

Actuator Style :

Round Button

Subcategory :

Switches

Product Status :

Active

Base Product Number :

TLS A 040

Actuator Material :

-

Color :

Light blue

Product Type :

Tactile Switches

ECCN (US) :

EAR99

Maximum Operating Temperature (°C) :

90

Series :

TLS

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Product Height (mm) :

3.95

Illumination Color :

-

Mechanical Life (Cycles) :

500000

Circuit :

SPST-NO

Product Category :

Tactile Switches

Contact Rating @ Voltage :

0.05A @ 16VDC

Actuator :

Round

Width :

8.4 mm

Ingress Protection :

IP54 - Dust Protected, Water Resistant

Mechanical Life :

500,000 Cycles

Outline :

8.40mm x 8.00mm

Number of Terminals :

2

Maximum Operating Temperature :

+ 90 C

Current Rating :

50 mA

RoHS :

Details

Body Depth (mm) :

8

Actuator Length (mm) :

1.35

Actuator Length, Right Angle :

-

Operating Force :

4 N

Brand :

CandK

Number of Rows :

1

Product Length (mm) :

8.4

Mounting Type :

Surface Mount

Terminal Pitch (mm) :

8

Body Length (mm) :

8

Height :

3.95 mm

Switch Function :

OFF - (ON)

Illumination Voltage (Nominal) :

-

Illumination :

Non-Illuminated

Body Orientation :

Straight

Terminal Length (mm) :

0.3

Illumination Type, Color :

-

IP Rating :

IP54

Product Depth (mm) :

8.6

Switch Travel :

0.90mm

Manufacturer :

CandK Switches

Operating Temperature :

-40°C ~ 90°C

Minimum Operating Temperature :

- 40 C

Mounting Style :

SMD/SMT

Type :

Soft Sound

Maximum Current Rating (A) :

0.05

Product :

Switches

Mounting :

Surface Mount

Operating Force (N) :

4

Lamp Type :

-

Pole Throw Configuration :

SPST
