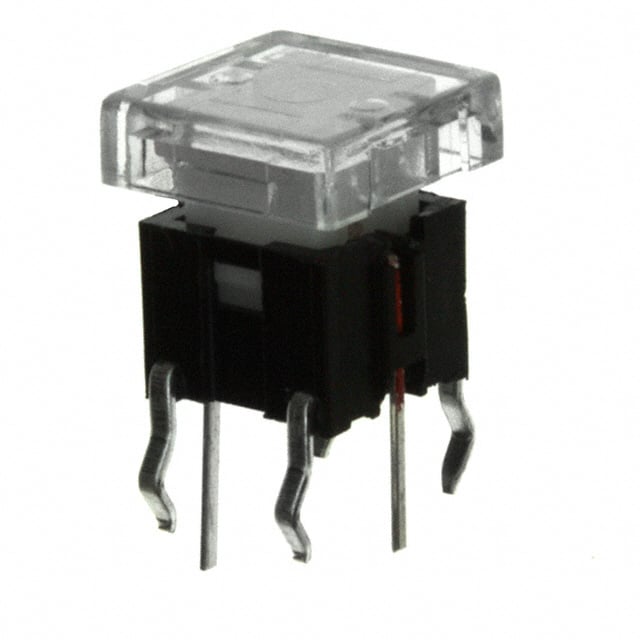

TL1240RQ1JCLR

Manufacturer :

E-Switch

Product Category :

Actuator Orientation :

Top Actuated

Number of Switches :

1

Terminal Finish :

Silver

ECCN Code :

EAR99

Operating Force :

160gf

Length - Termination :

0.138 inch

Published :

2006

Actuator Type :

Square Button

JESD-609 Code :

e4

RoHS Status :

ROHS3 Compliant

Illumination :

Illuminated

Contact (DC) Max Rating R Load :

.05A@12VDC

Body Breadth :

6 mm

End Contact Plating :

Silver

Termination :

PC Pin

Series :

TL1240

Body Length or Diameter :

6mm

Termination Style :

PC Pin

Center Contact Plating :

Silver

Mechanical Life :

100,000 Cycles

Contact Rating @ Voltage :

0.05A @ 12VDC

HTS Code :

8536.50.90.40

Mounting Type :

Through Hole

Actuator Height off PCB, Vertical :

8.20mm

Packaging :

Bulk

Body Height :

4.8mm

Illumination Voltage (Nominal) :

2.3VDC

Illumination Type :

Illuminated, LED

Insulation Resistance :

100000000Ohm

Switch Type :

KEYPAD SWITCH

Actuator Length :

0.134 inch

Circuit :

SPST-NO

Contact Resistance :

0.1mOhm

PCB Hole Count :

6

Switch Travel :

0.25mm

Illumination Type, Color :

LED, Red

Throw Configuration :

SPST

Electrical Life :

100000 Cycle(s)

Actuator Material :

Polybutylene Terephthalate (PBT)

Switch Function :

Off-Mom

Operating Temperature :

-20°C~70°C

Factory Lead Time :

18 Weeks

Outline :

6.00mm x 6.00mm

Mount :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Dielectric Withstanding Voltage :

250VAC V

Contact Current(DC)-Max :

0.05A
