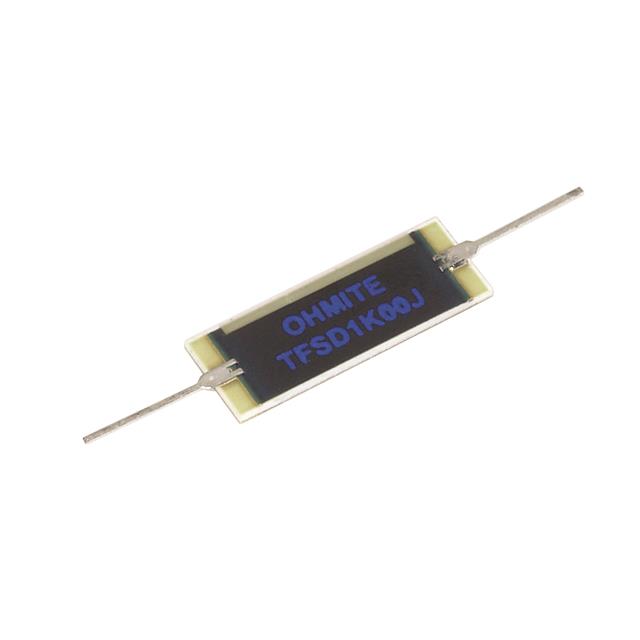

TFSC680RJE
Or copy the link below:
- Mfr.Part #
- TFSC680RJE
- Manufacturer
- Ohmite
- Package / Case
- Axial
- Datasheet
- Download
- Description
- RES 680 OHM 5% 3/4W AXIAL
- Stock
- 21,467
- In Stock ：
- 21,467
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Ohmite
- Product Category :
- Through Hole Resistors
- Resistor Type :
- FIXED RESISTOR
- Voltage - Rated :
- 4kV
- Pbfree Code :
- yes
- Power Rating :
- 750mW
- Number of Terminations :
- 2
- Rated Power Dissipation (P) :
- 0.75W
- Published :
- 2014
- Diameter :
- 5.5mm
- Feature :
- Non-Inductive, Pulse Withstanding
- Construction :
- Encapsulated
- Size / Dimension :
- 0.217 x 0.028 Rectangularx0.512L 5.50mmx0.70mmx13.00mm
- Temperature Coefficient :
- ±100ppm/°C
- Voltage - Rated DC :
- 4kV
- Lead Length :
- 10mm
- Terminal Finish :
- Tin/Silver (Sn/Ag)
- Resistance :
- 680Ohm
- JESD-609 Code :
- e2
- Max Power Dissipation :
- 750mW
- Tolerance :
- ±5%
- RoHS Status :
- ROHS3 Compliant
- Lead Diameter :
- 500 µm
- Composition :
- Thick Film
- Package / Case :
- Axial
- Series :
- TFS
- Operating Temperature :
- -55°C~200°C
- Mount :
- Through Hole
- Height :
- 1.1mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Power (Watts) :
- 0.75W 3/4W
- Terminal Shape :
- Flat
- Factory Lead Time :
- 18 Weeks
- Datasheets
- TFSC680RJE
TFSC680RJE Documents
Through Hole FIXED RESISTOR, 680Ohm, 0.75W 3/4W, Thick Film,
