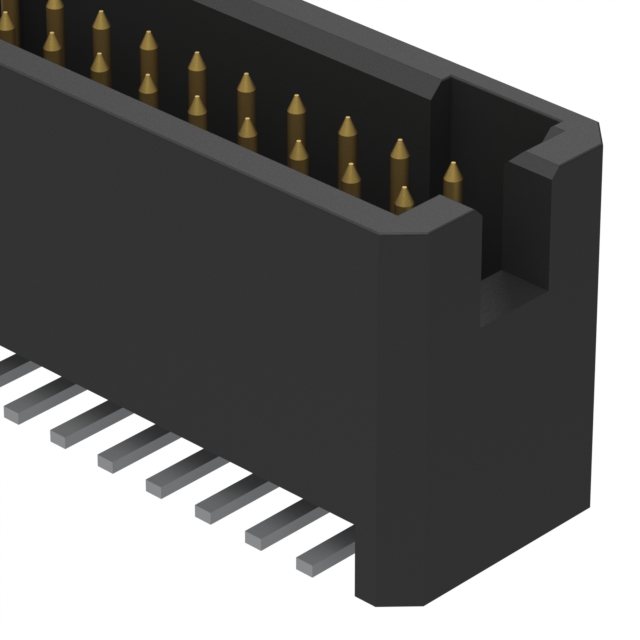

TFC-110-12-L-D
Or copy the link below:
- Mfr.Part #
- TFC-110-12-L-D
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- .050 X .050 TERMINAL STRIP
- Stock
- 41,092
- In Stock ：
- 41,092
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Factory Lead Time :
- 3 Weeks
- Contact Finish - Mating :
- Gold
- Connector Type :
- Header
- Pitch - Mating :
- 0.050 1.27mm
- Mixed Contacts :
- No
- Contact Length - Mating :
- 0.130 3.30mm
- IEC Conformance :
- No
- Feature :
- Board Guide
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Number of Rows :
- 2
- Pbfree Code :
- yes
- REACH SVHC :
- No SVHC
- Mounting Type :
- Surface Mount
- Style :
- Board to Board or Cable
- Option :
- GENERAL PURPOSE
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Insulation Color :
- Black
- Current Rating (Amps) :
- 3.1A per Contact
- Series :
- Tiger Eye™ TFC
- Contact Type :
- Male Pin
- Total Number of Contacts :
- 20
- Packaging :
- Tube
- MIL Conformance :
- No
- Number of Positions Loaded :
- All
- Fastening Type :
- Push-Pull
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Contact Shape :
- Square
- Additional Feature :
- TIGER EYE SYSTEM, SHROUDED
- Published :
- 2013
- Gender :
- Male
- Shrouding :
- Shrouded - 4 Wall
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- JESD-609 Code :
- e3
- Mount :
- Surface Mount
- DIN Conformance :
- No
- Contact Material :
- Phosphor Bronze
- Insulation Height :
- 0.295 7.50mm
- Termination :
- Solder
- Number of Positions :
- 20
- Voltage - Rated :
- 275VAC
- Contact Finish - Post :
- Tin
- Filter Feature :
- No
- Operating Temperature :
- -55°C~125°C
- Datasheets
- TFC-110-12-L-D
Tiger Eye™ TFC Series 2-Row Header Solder Phosphor Bronze Tube Surface Mount Gold Liquid Crystal Polymer (LCP) 20-Position Board to Board or Cable 0.295 7.50mm Height
TFC-110-12-L-D-A Overview
The product is packaged in Header.This device is mounted in the Surface Mount position.It has been determined that a Tube case is necessary to package the product.There is a product in the Tiger Eye™ TFC Series.To name a few, there is also TIGER EYE SYSTEM, SHROUDED.There are a number of advantages to its Board Guide feature.Part Surface Mount is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.
TFC-110-12-L-D-A Features
Tiger Eye™ TFC series
TFC-110-12-L-D-A Applications
There are a lot of Samtec Inc.
TFC-110-12-L-D-A Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
