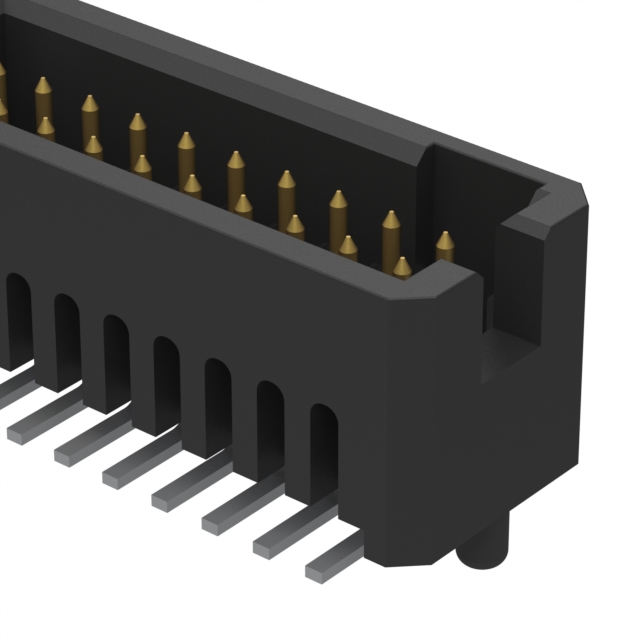

TFC-110-02-L-D-A
Or copy the link below:
- Mfr.Part #
- TFC-110-02-L-D-A
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 20POS 1.27MM
- Stock
- 156
- In Stock ：
- 156
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Gender :
- Male
- Published :
- 2011
- Depth :
- 5.72mm
- Insulation Color :
- Black
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Radiation Hardening :
- No
- Connector Type :
- Header
- Series :
- Tiger Eye™ TFC
- Style :
- Board to Board or Cable
- JESD-609 Code :
- e3
- Number of Positions Loaded :
- All
- Contact Type :
- Male Pin
- Factory Lead Time :
- 3 Weeks
- Current Rating (Amps) :
- 3.1A per Contact
- Number of Positions :
- 20
- Voltage - Rated :
- 275VAC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Current Rating :
- 3.7A
- Housing Material :
- Polymer
- Contact Shape :
- Square
- Contact Length - Mating :
- 0.133 3.38mm
- Contact Finish - Mating :
- Gold
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- Phosphor Bronze
- Contact Finish - Post :
- Tin
- Number of Rows :
- 2
- Fastening Type :
- Push-Pull
- Material Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 4 Wall
- Pitch - Mating :
- 0.050 1.27mm
- Termination :
- Solder
- Packaging :
- Tube
- Orientation :
- Straight
- Length :
- 15.88mm
- Insulation Height :
- 0.225 5.72mm
- REACH SVHC :
- No SVHC
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Max Voltage Rating (AC) :
- 350V
- Mounting Type :
- Surface Mount
- Pbfree Code :
- yes
- Operating Temperature :
- -55°C~125°C
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Feature :
- Board Guide
- Datasheets
- TFC-110-02-L-D-A
Tiger Eye™ TFC Series 2-Row Header Solder Phosphor Bronze Tube Surface Mount Gold Liquid Crystal Polymer (LCP) 20-Position Board to Board or Cable 0.225 5.72mm Height
TFC-110-02-L-D-A Overview
The product is packaged in Header.This device is mounted in the Surface Mount position.It has been determined that a Tube case is necessary to package the product.There is a product in the Tiger Eye™ TFC Series.There are a number of advantages to its Board Guide feature.As a result, the device runs at -55°C~125°C Operating Temperature.
TFC-110-02-L-D-A Features
Tiger Eye™ TFC series
TFC-110-02-L-D-A Applications
There are a lot of Samtec Inc.
TFC-110-02-L-D-A Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
