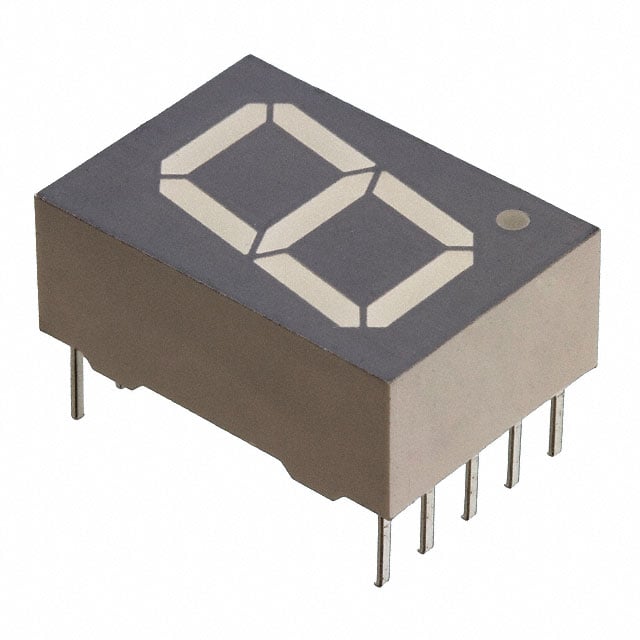

TDSR1350

Manufacturer :

Vishay

Product Category :

Pbfree Code :

yes

Color :

Red

RoHS Status :

ROHS3 Compliant

Display Type :

7-Segment

Package / Case :

10-DIP (0.600, 15.24mm)

Reverse Voltage :

5V

Operating Supply Voltage :

1.8V

Viewing Area (height) :

7mm

Character Width :

7.4mm

Max Operating Temperature :

85°C

Forward Current :

10mA

Number of Elements :

8

Number of Functions :

1

Mount :

PCB, Through Hole

Radiation Hardening :

No

Size / Dimension :

0.689 Hx0.482W x 0.252 D 17.50mmx12.25mmx6.40mm

Power Dissipation :

185mW

Millicandela Rating :

0.28mcd ~ 3.6mcd

Digit/Alpha Size :

0.51 13.00mm

Depth :

17.5mm

Number of Characters :

1

Character Height :

13mm

Element Configuration :

Common Anode

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Common Pin :

Common Anode

Current - Test :

1mA

Power Consumption :

185mW

Number of Pins :

10

Height :

17.5006mm

Dominant Wavelength :

640 nm

Luminous Intensity :

3.6 mcd

Published :

2004

Packaging :

Bulk

Min Operating Temperature :

-40°C

Number of Segments :

7

Factory Lead Time :

11 Weeks
