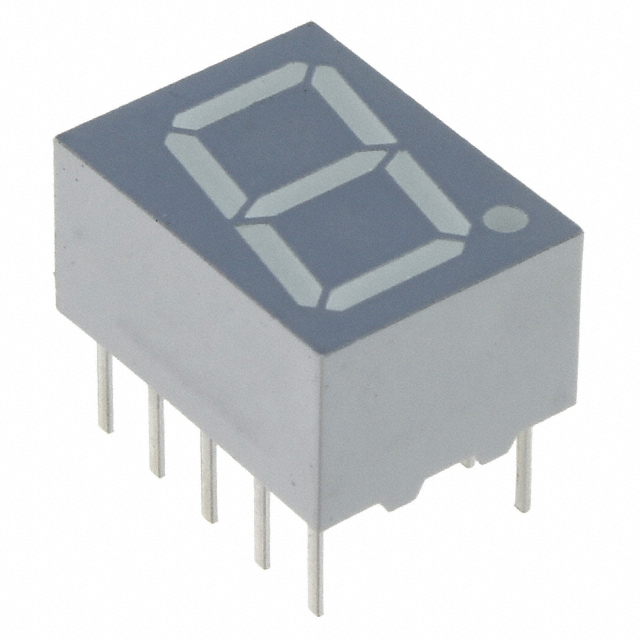

TDSR1060

Manufacturer :

Vishay

Product Category :

Voltage - Forward (Vf) (Typ) :

1.8V

Power Dissipation :

185mW

Element Configuration :

Common Cathode

Digit/Alpha Size :

0.39 10.00mm

Mount :

Through Hole

Luminous Intensity :

3.6 mcd

Size / Dimension :

0.500 Hx0.372W x 0.252 D 12.60mmx9.45mmx6.40mm

REACH SVHC :

Unknown

Depth :

9.7mm

Number of Characters :

1

Package / Case :

10-DIP (0.300, 7.62mm)

Min Operating Temperature :

-40°C

Max Operating Temperature :

85°C

Number of Pins :

10

Color :

Red

RoHS Status :

ROHS3 Compliant

Terminal Finish :

Silver (Ag)

Forward Voltage-Max :

2.4V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e4

Forward Current :

1mA

Display Type :

7-Segment

Character Width :

6mm

Common Pin :

Common Cathode

Published :

2010

Character Height :

10mm

Dominant Wavelength :

640 nm

Packaging :

Bulk

Number of Elements :

8

Height :

12.7mm

Viewing Area (height) :

7mm

Pbfree Code :

yes

Number of Segments :

7

Factory Lead Time :

16 Weeks

Number of Functions :

1

Millicandela Rating :

3.6mcd

Reverse Voltage :

5V

Wavelength - Peak :

650nm
