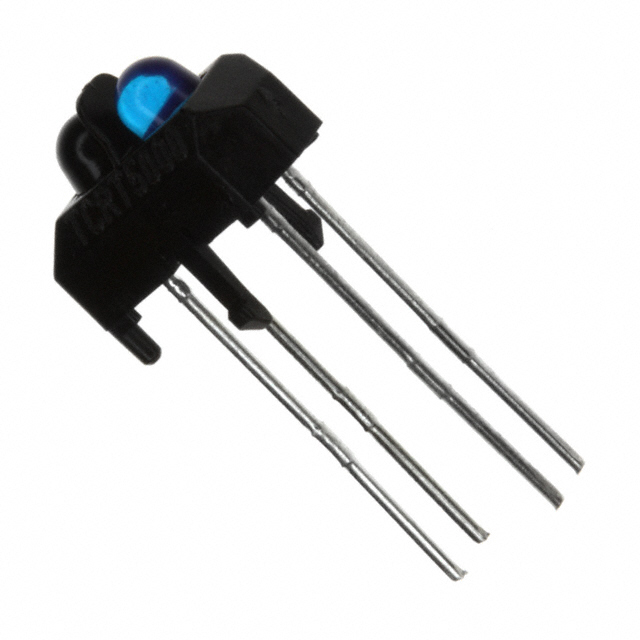

TCRT5000L

Manufacturer :

Vishay

Product Category :

Optical Sensors - Reflective - Analog Output

Current - DC Forward (If) (Max) :

60mA

Forward Current :

60mA

Number of Pins :

4

REACH SVHC :

No SVHC

Operating Temperature :

-25°C~85°C

Contact Plating :

Silver, Tin

Height :

7mm

Max Operating Temperature :

85°C

Sensing Method :

Reflective

Factory Lead Time :

32 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reverse Breakdown Voltage :

5V

Length :

10.2mm

Max Collector Current :

100mA

Input Current :

60mA

Mount :

Through Hole

Voltage - Collector Emitter Breakdown (Max) :

70V

Package / Case :

PCB Mount

Published :

2009

Radiation Hardening :

No

Packaging :

Tube

Max Power Dissipation :

200mW

Output Type :

Phototransistor

Current - Collector (Ic) (Max) :

100mA

Forward Voltage :

1.25V

Output Voltage :

70V

Width :

5.8mm

Reverse Voltage (DC) :

5V

Wavelength :

950 nm

Min Operating Temperature :

-25°C

RoHS Status :

ROHS3 Compliant

Lead Free :

Lead Free

Sensing Distance :

0.591 (15mm)

Number of Elements :

1

Voltage - Rated DC :

1.25V

Number of Channels :

1

Mounting Type :

Through Hole

Power Dissipation :

200mW

Collector Emitter Voltage (VCEO) :

70V

Collector Emitter Breakdown Voltage :

70V
