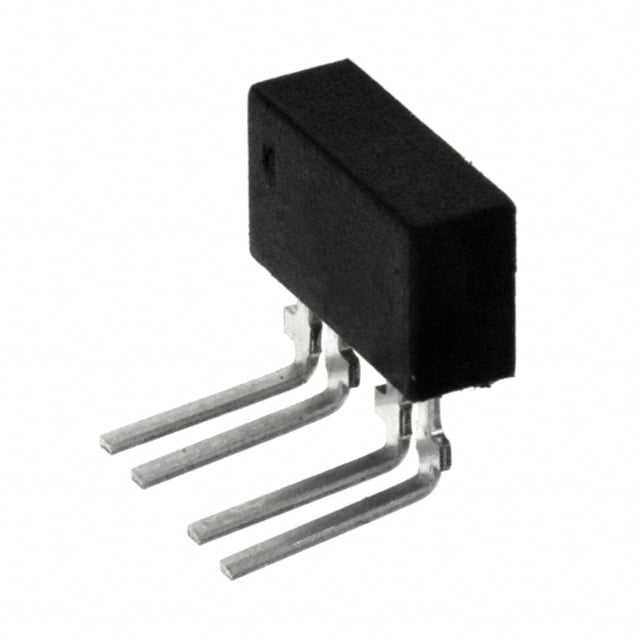

TCRT1010
- Mfr.Part #
- TCRT1010
- Manufacturer
- Vishay
- Package / Case
- PCB Mount
- Datasheet
- Download
- Description
- SENSOR OPTO TRANS 4MM REFL THPCB
- Stock
- 8
- In Stock :
- 8
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Vishay
- Product Category :
- Optical Sensors - Reflective - Analog Output
- Length :
- 7mm
- Lead Free :
- Lead Free
- Input Current :
- 50mA
- Output Type :
- Phototransistor
- Number of Pins :
- 4
- Forward Voltage :
- 1.25V
- Packaging :
- Bulk
- Output Current :
- 100mA
- Number of Elements :
- 1
- Wavelength :
- 950 nm
- Sensing Distance :
- 0.157 (4mm)
- Reverse Voltage (DC) :
- 5V
- Collector Emitter Breakdown Voltage :
- 32V
- REACH SVHC :
- No SVHC
- Mount :
- Through Hole
- Operating Temperature :
- -40°C~85°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reverse Voltage :
- 5V
- Number of Channels :
- 2
- Radiation Hardening :
- No
- Forward Current :
- 50mA
- Power Dissipation :
- 200mW
- VCEsat-Max :
- 0.3 V
- Factory Lead Time :
- 32 Weeks
- Contact Plating :
- Silver, Tin
- Collector Emitter Voltage (VCEO) :
- 32V
- Package / Case :
- PCB Mount
- JESD-609 Code :
- e4
- Terminal Finish :
- Silver (Ag)
- Output Voltage :
- 32V
- Published :
- 2011
- Reverse Breakdown Voltage :
- 5V
- Sensing Method :
- Reflective
- Width :
- 2.5mm
- Height :
- 4mm
- Max Collector Current :
- 50mA
- Voltage - Rated DC :
- 32V
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole, Right Angle
- Datasheets
- TCRT1010
