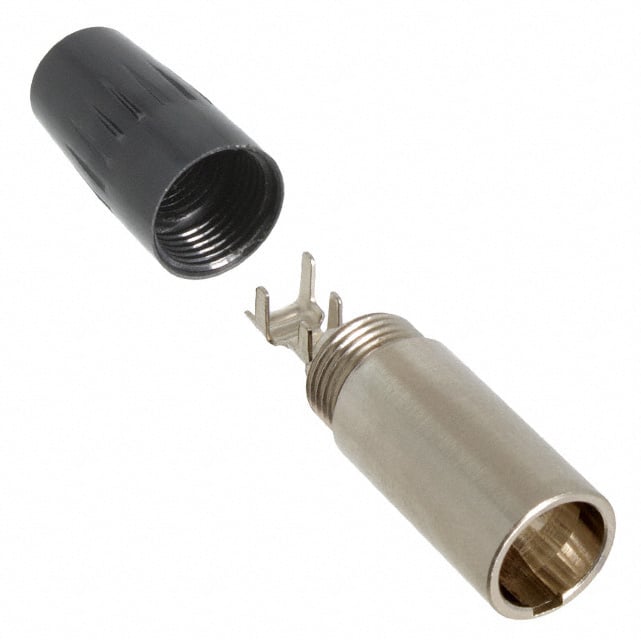

TA3MX
Or copy the link below:
- Mfr.Part #
- TA3MX
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN RCPT MALE MINI XLR 3P SLDR
- Stock
- 500
- In Stock ：
- 500
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Circular Connector Assemblies
- Approval Agency :
- UL
- Lead Free :
- Lead Free
- Length :
- 51.4mm
- Contact Plating :
- Silver, Tin
- Body Material :
- Metal
- Operating Temperature :
- -55°C~85°C
- Voltage - Rated :
- 125VAC
- Factory Lead Time :
- 8 Weeks
- Color :
- Black, Silver
- Series :
- Tini Q-G® TA-X
- Shielding :
- Shielded
- Orientation :
- Keyed
- Gender :
- Male
- Feature :
- Backshell, Cable Clamp, Strain Relief
- Number of Ports :
- 1
- Min Operating Temperature :
- -55°C
- Applications :
- Audio
- Number of Terminations :
- 3
- Shell Size - Insert :
- Mini XLR
- Max Operating Temperature :
- 85°C
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Insert Material :
- Polyphenylene Sulfide (PPS)
- Current Rating :
- 5A
- Contact Resistance :
- 10MOhm
- Number of Positions :
- 3
- Plating :
- Nickel
- Voltage - Rated DC :
- 125V
- Published :
- 1998
- Contact Material :
- COPPER ALLOY
- Backshell Material, Plating :
- Thermoplastic
- Material :
- Brass
- Max Current Rating :
- 5A
- Termination :
- Solder
- Current Rating (Amps) :
- 5A
- Fastening Type :
- Latch Lock
- Material Flammability Rating :
- UL94 V-0
- Cable Opening :
- 0.065 ~ 0.155 (1.65mm ~ 3.94mm)
- Max Voltage Rating (AC) :
- 125V
- Contact Gender :
- Male
- Contact Finish - Mating :
- Silver
- RoHS Status :
- ROHS3 Compliant
- Number of Contacts :
- 3
- Packaging :
- Bulk
- Connector Type :
- Receptacle, Male Pins
- Shell Finish :
- Nickel
- Mount :
- Cable, Free Hanging
- Package / Case :
- Metal
- Mounting Type :
- Free Hanging (In-Line)
- Insulation Material :
- Plastic
- Shell Material :
- COPPER ALLOY
- REACH SVHC :
- No SVHC
- Voltage - Rated AC :
- 125V
- Datasheets
- TA3MX
Receptacle, Male Pins Copper Alloy Free Hanging (In-Line) 3 Positions Solder Silver Nickel Bulk Keyed Latch Lock
TA3MX Overview
The product comes in a package of Receptacle, Male Pins.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Tini Q-G® TA-X Series.Use it when the temperature is below 85°C.Temperatures below -55°C are required for this device to operate.There is a device enclosed in the packaging with the Metal.It is more powerful in many ways due to its Backshell, Cable Clamp, Strain Relief feature.It is mounted by Cable, Free Hanging.It operates at an operating temperature of -55°C~85°C.
TA3MX Features
3 basic kinds of terminations
Tini Q-G® TA-X series
TA3MX Applications
There are a lot of Switchcraft Inc.
TA3MX Circular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
