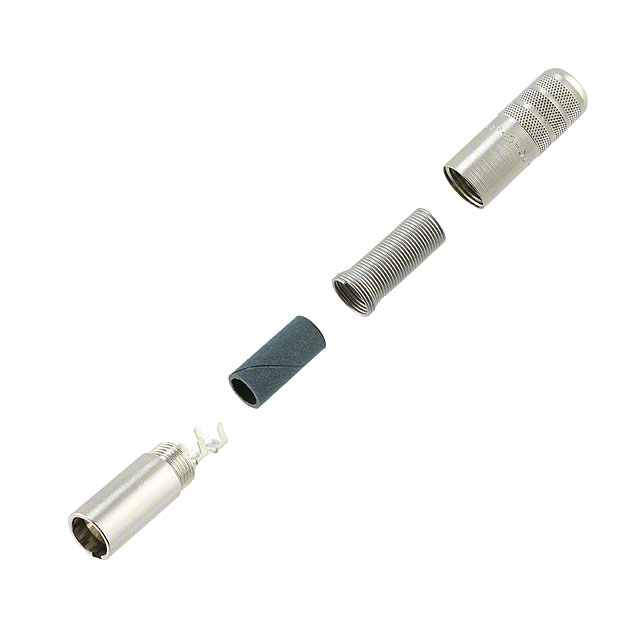

TA3MSHF
Or copy the link below:
- Mfr.Part #
- TA3MSHF
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE MINI XLR 3P SLDR
- Stock
- 32
- In Stock ：
- 32
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Circular Connector Assemblies
- Packaging :
- Bulk
- Fastening Type :
- Latch Lock
- Option :
- GENERAL PURPOSE
- Cable Opening :
- 0.240 (6.10mm)
- Voltage - Rated :
- 125VAC
- Applications :
- Audio, Medical
- Reach Compliance Code :
- not_compliant
- Configuration :
- 1X1 VERTICAL
- Number of Poles :
- 3
- Number of Positions :
- 3
- Connector Type :
- Receptacle, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Gender :
- Male
- Insert Material :
- Thermoplastic
- Material Flammability Rating :
- UL94 V-0
- Series :
- Tini Q-G® TA
- Feature :
- Backshell, Cable Clamp, Ground, Strain Relief
- Contact Material :
- COPPER ALLOY
- Published :
- 2010
- Shell Size - Insert :
- Mini XLR
- JESD-609 Code :
- e4
- DIN Conformance :
- No
- Shell Material :
- COPPER ALLOY
- Backshell Material, Plating :
- Copper Alloy, Nickel
- RoHS Status :
- ROHS3 Compliant
- MIL Conformance :
- No
- IEC Conformance :
- No
- Contact Finish - Mating :
- Silver
- Operating Temperature :
- -55°C~85°C
- Factory Lead Time :
- 12 Weeks
- Mount :
- Cable, Free Hanging
- Current Rating :
- 5A
- Shell Finish :
- Nickel
- Mounting Type :
- Free Hanging (In-Line)
- Shielding :
- Shielded
- Number of Ports :
- 1
- ECCN Code :
- EAR99
- Orientation :
- Keyed
- Termination :
- Solder Cup
- Datasheets
- TA3MSHF
TA3MSHF Documents
Receptacle, Male Pins Copper Alloy Free Hanging (In-Line) 3 Positions Solder Cup Silver Nickel Bulk Keyed Latch Lock
TA3MSHF Overview
Packaging is Receptacle, Male Pins.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Tini Q-G® TA Series, it can be found in this category.With its Backshell, Cable Clamp, Ground, Strain Relief feature, it is more powerful in many ways.In this case, Cable, Free Hanging mounts the part.The device is operating at -55°C~85°C Operating Temperature.
TA3MSHF Features
Tini Q-G® TA series
TA3MSHF Applications
There are a lot of Switchcraft Inc.
TA3MSHF Circular Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
