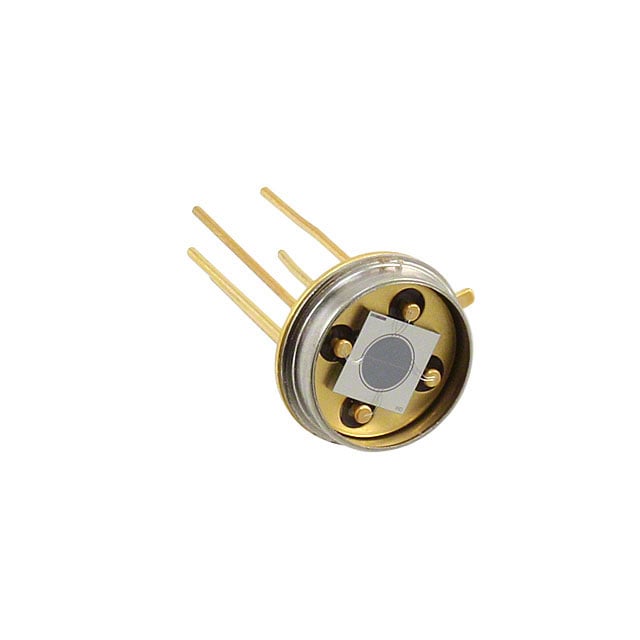

SXUVPS4C
Or copy the link below:
- Mfr.Part #
- SXUVPS4C
- Manufacturer
- Opto Diode Corporation
- Package / Case
- TO-5-3
- Datasheet
- Download
- Description
- QUADRANT PHOTODIODE 5MM 254NM
- Stock
- 25,315
- In Stock ：
- 25,315
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Opto Diode Corporation
- Product Category :
- Optical Sensors - Photodiodes
- Current - Dark (Typ) :
- 1nA
- Published :
- 2015
- Operating Temperature :
- -10°C~40°C
- Packaging :
- Box
- Mounting Type :
- Through Hole
- Max Reverse Voltage (DC) :
- 20V
- Voltage - DC Reverse (Vr) (Max) :
- 20V
- Dark Current :
- 1nA
- Active Area :
- 1.25mm2 (x4)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Package / Case :
- TO-5-3
- Factory Lead Time :
- 16 Weeks
- Response Time :
- 1μs
- RoHS Status :
- RoHS Compliant
- Responsivity @ nm :
- 0.02 A/W @ 254nm
- Series :
- SXUV
- Min Operating Temperature :
- -10°C
- Max Operating Temperature :
- 40°C
- Datasheets
- SXUVPS4C
Through Hole -10°C~40°C Box TO-5-3 20V 1.25mm2 (x4) 1μs 1nA
SXUVPS4C Overview
In order to protect the photodiodes against damage, they are packaged in the Box. To ensure safety, photodiodes are put into TO-5-3 packages. It is possible for the photodiodes to withstand 20V voltage in reverse-bias mode on a continuous basis. During reverse-bias operation, the photodiodes should never exceed 20V. It is recommended that photodiodes are operated at a temperature no higher than 40°C. However, the photodiodes should be operated at a minimum temperature of -10°C. It is possible for a photodiode to operate at 1nA current even if no light is provided.
SXUVPS4C Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -10°C~40°C
Packaging: Box
Response Time: 1μs
Responsivity @ nm: 0.02 A/W @ 254nm
SXUVPS4C Applications
There are a lot of Opto Diode Corp
SXUVPS4C Photodiodes applications.
- Electronic Equipment
- Industrial Automation
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
- Heart Rate Monitoring
- Pulse Oximetry
