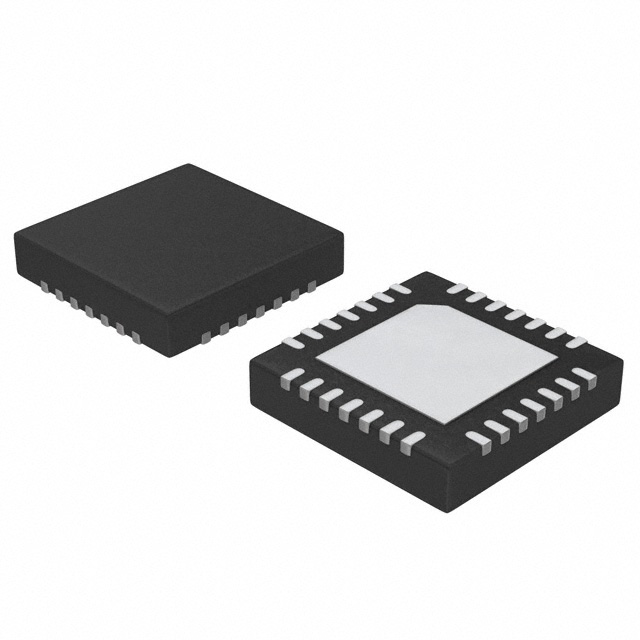

SX1279IMLTRT
Or copy the link below:
- Mfr.Part #
- SX1279IMLTRT
- Manufacturer
- Semtech
- Package / Case
- 28-VQFN Exposed Pad
- Datasheet
- Download
- Description
- IC RF TXRX 802.15.4 28VQFN
- Stock
- 2,758
- In Stock ：
- 2,758
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Semtech
- Product Category :
- RF Transceiver ICs
- Terminal Form :
- NO LEAD
- Operating Temperature :
- -40°C~85°C
- Published :
- 2011
- Width :
- 6mm
- Sensitivity :
- -148dBm
- Supply Voltage :
- 3.3V
- Number of Terminations :
- 28
- Power - Output :
- 20dBm
- JESD-30 Code :
- S-XQCC-N28
- Package / Case :
- 28-VQFN Exposed Pad
- Base Part Number :
- SX127
- Type :
- TxRx Only
- Terminal Position :
- QUAD
- Surface Mount :
- yes
- Length :
- 6mm
- Voltage - Supply :
- 1.8V~3.7V
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Serial Interfaces :
- SPI
- Mounting Type :
- Surface Mount
- Current - Receiving :
- 9.9mA~13.8mA
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Current - Transmitting :
- 20mA~28mA
- RF Family/Standard :
- 802.15.4
- Packaging :
- Tape and Reel (TR)
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Number of Functions :
- 1
- Data Rate (Max) :
- 300kbps
- Height Seated (Max) :
- 1mm
- Protocol :
- LoRa™
- Frequency :
- 137MHz~1.02GHz
- Modulation :
- FSK, GFSK, GMSK, MSK, OOK
- Factory Lead Time :
- 12 Weeks
- RoHS Status :
- RoHS Compliant
- HTS Code :
- 8542.39.00.01
- Terminal Pitch :
- 0.65mm
- Datasheets
- SX1279IMLTRT
TxRx Only 137MHz~1.02GHz 1.8V~3.7V SPI 300kbps 9.9mA~13.8mA - Receiving 20mA~28mA - Transmitting FSK, GFSK, GMSK, MSK, OOK 28-VQFN Exposed Pad
SX1279IMLTRT Overview
There is also a 28-VQFN Exposed Pad package that RF transceiver IC is used to save space on the board. As far as RF transceiver's mounting is concerned, Surface Mount is adopted.TxRx Only emerges with transceiver RF's high efficiency and reliability.High reliability is achieved using advanced transceiver RF' packaging Tape & Reel (TR).Using the SX127 search parameter, you can discover variants of the transceiver.RF transceiver operates on the basis of the frequency of 137MHz~1.02GHz.
SX1279IMLTRT Features
28-VQFN Exposed Pad package
Surface Mount for mounting
TxRx Only
Tape & Reel (TR) is used
Use SX127
SX1279IMLTRT Applications
There are a lot of Semtech Corporation
SX1279IMLTRT RF Transceiver ICs applications.
- Low-power IoT applications
- LoT applications
- Power Amplifier (PA)
- Low Noise Amplifier (LNA)
- Transmit
- Receive
- Switch
- Power management
- Internet of Things (IoT)
- Secure Payment
