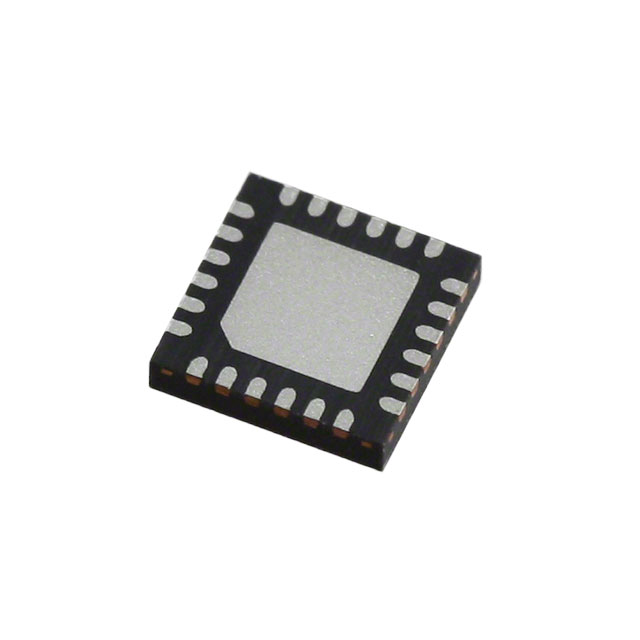

SX1223I073TRT

Share

Or copy the link below:

Mfr.Part #
SX1223I073TRT
Manufacturer
Semtech
Package / Case
24-WFQFN Exposed Pad
Datasheet
Download
Description
RF TX IC FSK 425-475MHZ 24WFQFN
Stock
5,332
In Stock :
5,332

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Semtech
Product Category :
RF Transmitters
RoHS Status :
RoHS Compliant
Height Seated (Max) :
0.8mm
Pbfree Code :
yes
Width :
4mm
Length :
4mm
Base Part Number :
SX122
Frequency :
425MHz~475MHz / 850MHz~950MHz
Pin Count :
24
Voltage - Supply :
2V~3.6V
Number of Functions :
1
Terminal Pitch :
0.5mm
Data Interface :
PCB, Surface Mount
Packaging :
Tape and Reel (TR)
Number of Terminations :
24
Moisture Sensitivity Level (MSL) :
3 (168 Hours)
Radiation Hardening :
No
Thickness :
750μm
Number of Pins :
24
Supply Voltage :
3.3V
Operating Temperature :
-40°C~85°C
HTS Code :
8542.39.00.01
Factory Lead Time :
16 Weeks
Nominal Supply Current :
25.8mA
Mount :
Surface Mount
Terminal Position :
QUAD
Power Supplies :
2.5/3.3V
JESD-609 Code :
e3
Lead Free :
Lead Free
Package / Case :
24-WFQFN Exposed Pad
Published :
2007
Applications :
AMR, Home Automation, HQ Music and Data
Modulation or Protocol :
FSK
Terminal Finish :
MATTE TIN
Antenna Connector :
PCB, Surface Mount
Power - Output :
10dBm
Data Rate (Max) :
153.6kbps
Telecom IC Type :
TELECOM CIRCUIT
Operating Supply Current :
25.8mA
Datasheets
SX1223I073TRT
Introducing RF Transmitters Semtech SX1223I073TRT from Chip IC,where excellence meets affordability. This product stands out with its Base Part Number:SX122, Number of Terminations:24, Number of Pins:24, Operating Temperature:-40°C~85°C, Package / Case:24-WFQFN Exposed Pad, SX1223I073TRT pinout, SX1223I073TRT datasheet PDF, SX1223I073TRT amp .Beyond RF Transmitters Semtech SX1223I073TRT ,we also offer MAX7044AKA+T, CC2550RSTR, CC1175RHBT, Our vast inventory has you covered. Contact us now for immediate solutions.
