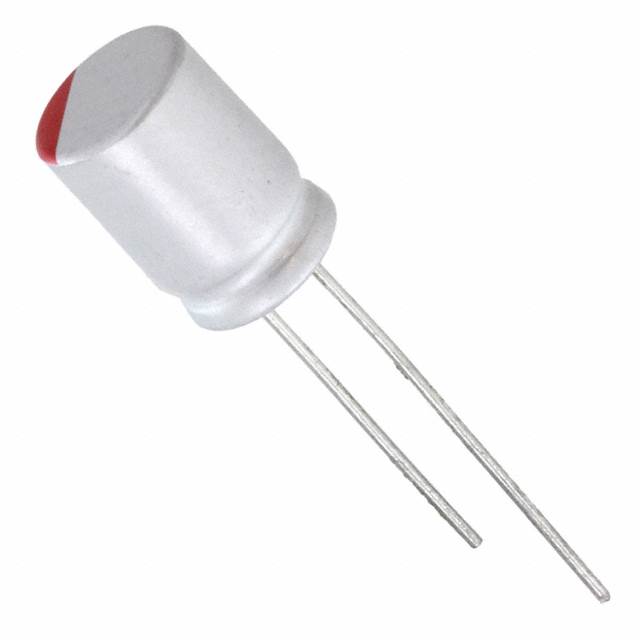

RHT1A331MDN1KX
Or copy the link below:
- Mfr.Part #
- RHT1A331MDN1KX
- Manufacturer
- Nichicon
- Package / Case
- Radial, Can
- Datasheet
- Download
- Description
- CAP ALUM POLY 330UF 20% 10V T/H
- Stock
- 13,005
- In Stock ：
- 13,005
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Nichicon
- Product Category :
- Aluminum - Polymer Capacitors
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Diameter :
- 8mm
- Lead Pitch :
- 3.5052mm
- Ripple Current @ High Frequency :
- 3.95A @ 100kHz
- Packaging :
- Tape and Box (TB)
- Package / Case :
- Radial, Can
- Voltage - Rated :
- 10V
- Lifetime @ Temp :
- 1000 Hrs @ 125°C
- Length :
- 11.5mm
- Ripple Current :
- 3.95A
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- Tolerance :
- ±20%
- Factory Lead Time :
- 18 Weeks
- Rated (DC) Voltage (URdc) :
- 10V
- Leakage Current :
- 0.66mA
- Life (Hours) :
- 1000 hours
- Terminal Pitch :
- 3.5mm
- Terminal Finish :
- Matte Tin (Sn)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Terminations :
- 2
- Type :
- Polymer
- Applications :
- GENERAL PURPOSE
- Capacitance :
- 330µF
- Terminal Shape :
- Wire
- HTS Code :
- 8532.22.00
- Height Seated (Max) :
- 0.512 13.00mm
- Operating Temperature :
- -55°C~125°C
- Size / Dimension :
- 0.315Dia 8.00mm
- JESD-609 Code :
- e3
- Series :
- FPCAP, RHT
- ESR (Equivalent Series Resistance) :
- 17mOhm
- Published :
- 2015
- Ripple Current @ Low Frequency :
- 395mA @ 120Hz
- Tan Delta :
- 0.12
- Polarity :
- Polar
- RoHS Status :
- ROHS3 Compliant
- Lead Spacing :
- 0.138 3.50mm
- Datasheets
- RHT1A331MDN1KX
RHT1A331MDN1KX Documents
330μF ±20% Radial, Can 0.512 13.00mm Tape & Box (TB) 17mOhm FPCAP, RHT Through Hole Polymer General Purpose
